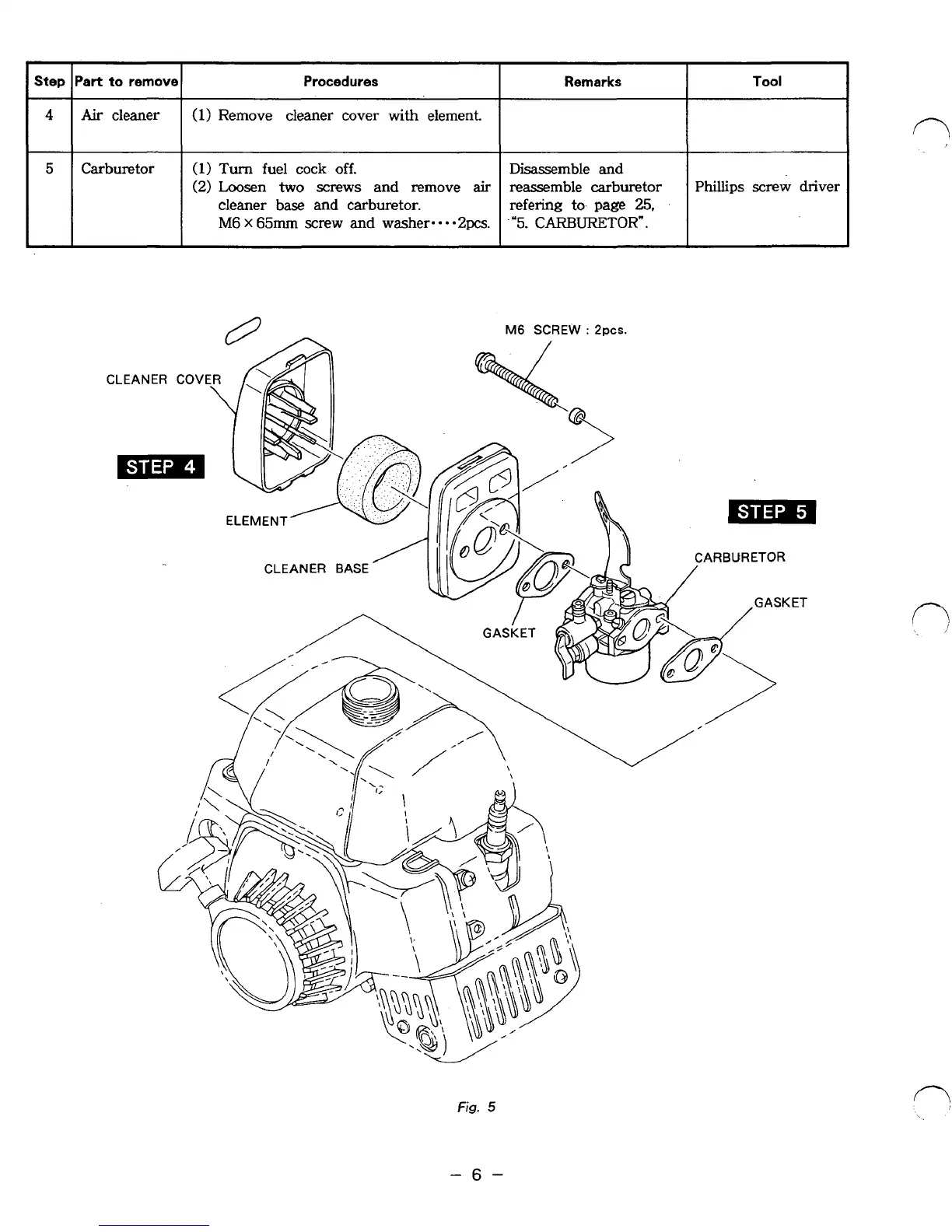

Step
Air
cleaner
4
Part
to
remove
5
Carburetor
Procedures
(1)
Remove cleaner cover with element.
(1)
Turn
fuel
cock
off.
(2)
Loosen
two
screws
and
remove
air
cleaner base
and
carburetor.
M6
x
65mm
screw and washer....2
pcs.
Remarks
Tool
Disassemble
and
reassemble carburetor
refering
to.
page
25,
Phillips
screw driver
.'5.
CARBURETOR".
rl
