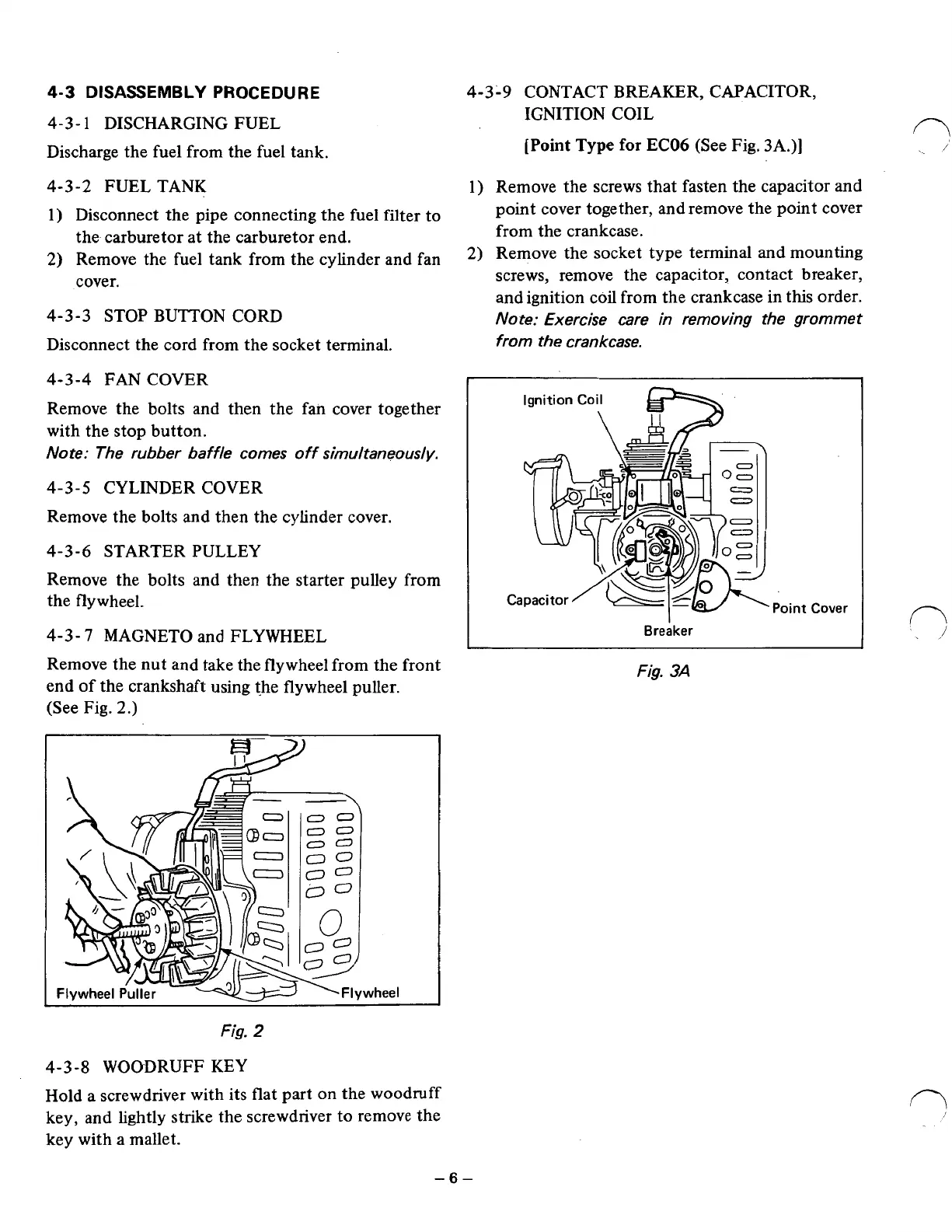

4-3 DISASSEMBLY PROCEDURE
4-3- 1 DISCHARGING FUEL
Discharge the fuel from the fuel tank.
4-3-2 FUEL TANK
1) Disconnect the pipe connecting the fuel filter to
2) Remove the fuel tank from the cylinder and fan
the carburetor at the carburetor end.
cover.
4-3-3 STOP BUTTON CORD
Disconnect the cord from the socket terminal.
4-3-4 FAN COVER
Remove the bolts and then the fan cover together
with the stop button.
Note: The rubber baffle comes off simultaneously.
4-3-5 CYLINDER COVER
Remove the bolts and then the cylinder cover.
4-3-6 STARTER PULLEY
Remove the bolts and then the starter pulley from
the flywheel.
4-3- 7 MAGNETO and FLYWHEEL
Remove the nut and take the flywheel from the front
end of the crankshaft using the flywheel puller.
(See Fig.
2.)
Fig. 2
4-3-8 WOODRUFF KEY
4-3-9 CONTACT BREAKER, CAPACITOR,
IGNITION COIL
[Point
Type for EC06 (See Fig. 3A.)] \/
n
1) Remove the screws that fasten the capacitor and
point cover together, and remove the point cover
from the crankcase.
2) Remove the socket type terminal and mounting
screws, remove the capacitor, contact breaker,
and ignition coil from the crankcase in this order.
Note: Exercise care in removing the grommet
from the crankcase.
Ignition Coil
Breaker
Point Cover
Fig. 3A
Hold a screwdriver with its flat part on the woodruff
key, and lightly strike the screwdriver to remove the
key with a mallet.
-6-
