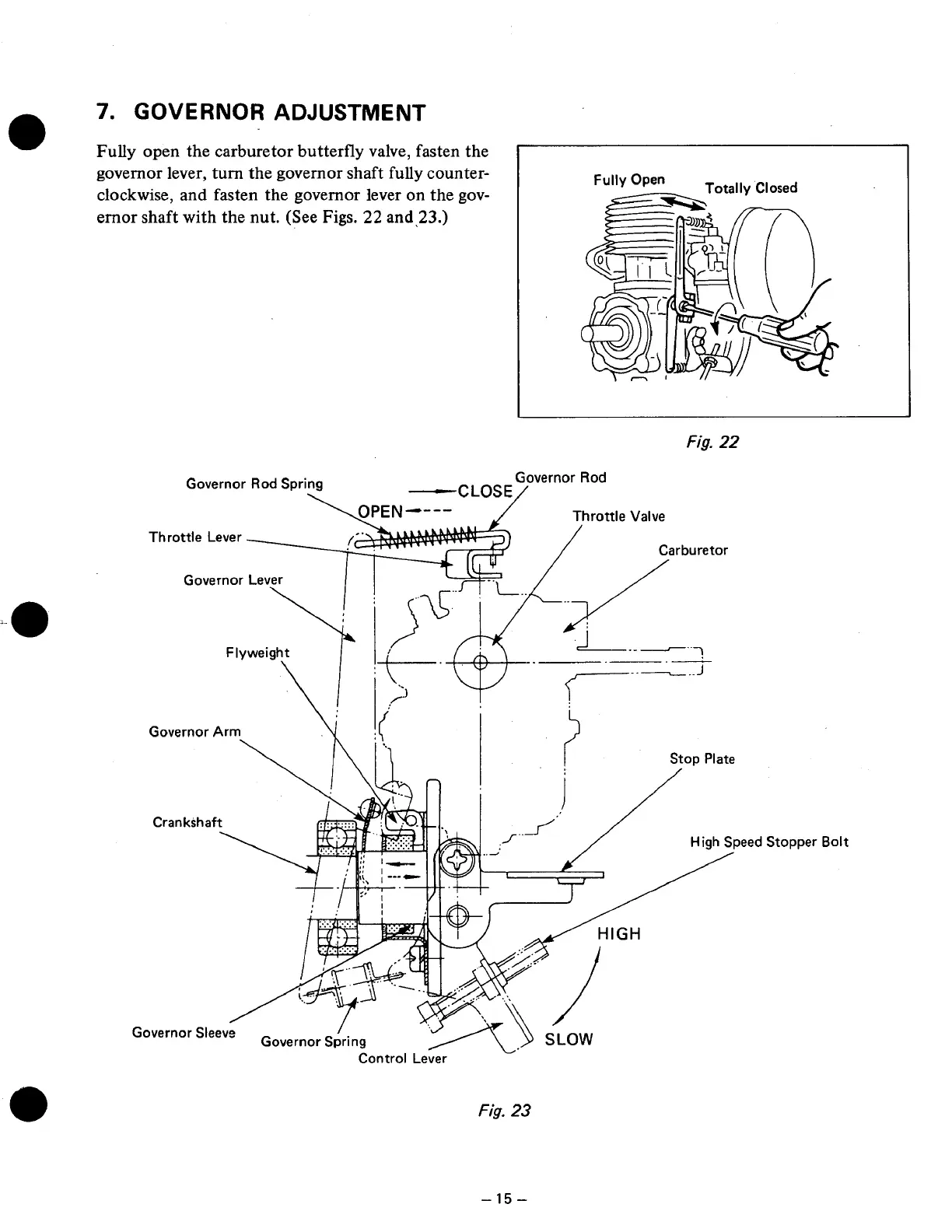

7. GOVERNOR ADJUSTMENT
Fully open the carburetor butterfly valve, fasten the
governor lever, turn the governor shaft fully counter-
clockwise, and fasten the governor lever on the
gov-
ernor shaft with the nut. (See Figs. 22 and,23.)
Fig. 22
Governor Rod Spri
Governor Rod
Throttle Lever
Carburetor
Governor Lever
Crankshaft
eed
Governor
Sleev
Control Lever
Fig. 23
Stopper Bolt
- 15 -
