4-3-
10

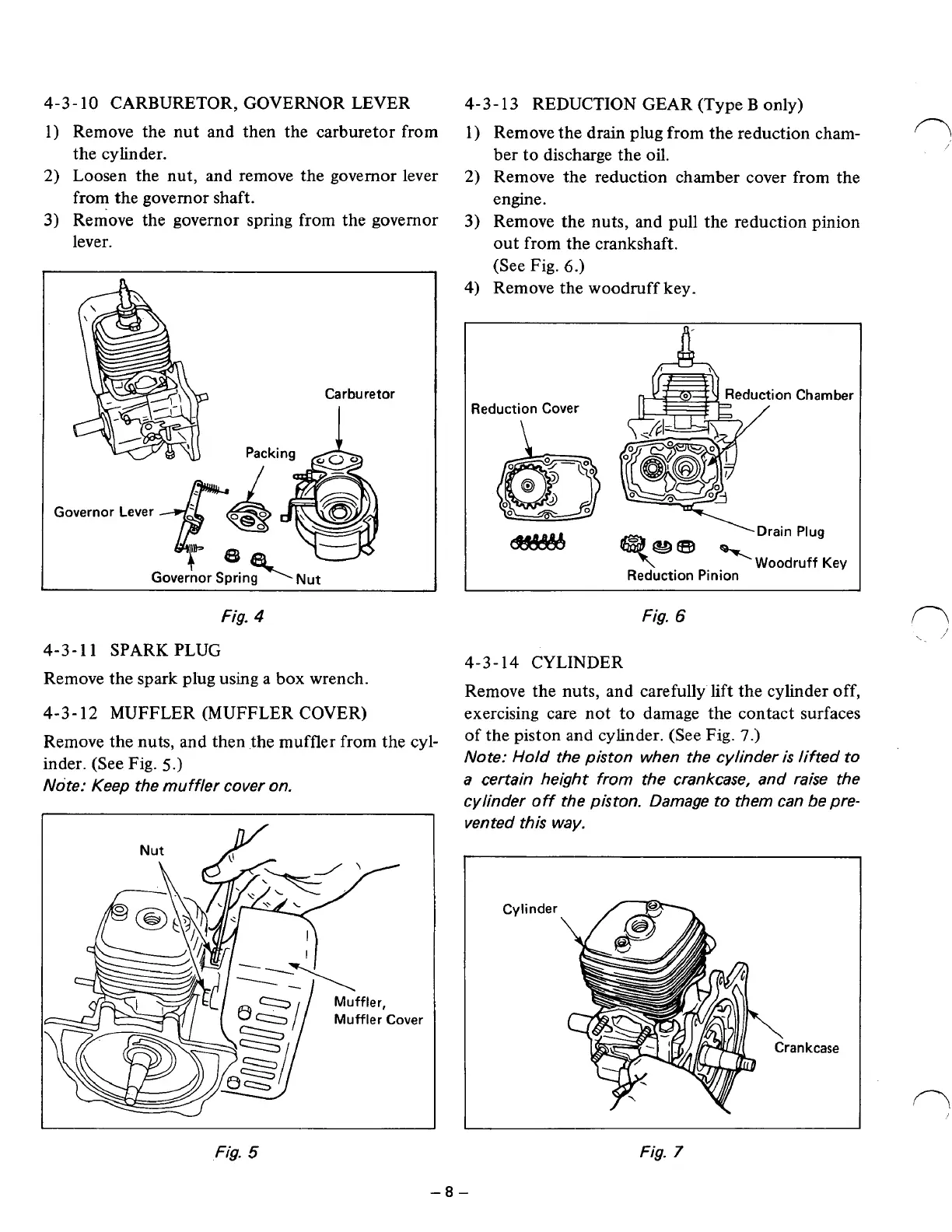

CARBURETOR, GOVERNOR LEVER
1) Remove the nut and then the carburetor from
2)
Loosen the nut, and remove the governor lever
3)
Remove the governor spring from the governor
the cylinder.
from the governor shaft.
lever.
c
L
4-3-
1
1
SPARK PLUG
Remove the spark plug using a box wrench.
4-3
-
12
MUFFLER (MUFFLER
COVER)
Carburetor
Governor Lever
Fig.
4
Remove the nuts, and then the muffler from the cyl-
inder. (See Fig.
5.)
Note: Keep the muffler cover on.
Nut
p/
Muffler Cover
4-
3
-
13
REDUCTION GEAR (Type
B
only)
1) Remove the drain plug from the reduction cham-
2)
Remove the reduction chamber cover from the
3)
Remove the nuts, and pull the reduction pinion
ber to discharge the
oil.
engine.
out from the crankshaft.
(See Fig.
6.)
4)
Remove the woodruff key.
Reduction Cover
eduction Chamber
%@"
%
'Drain Plug
Woodruff Key
Reduction Pinion
Fig.
6
4-3-14
CYLINDER
Remove the nuts, and carefully lift the cylinder off,
exercising care not to damage the contact surfaces
of
the piston and cylinder. (See Fig.
7.)
Note: Hold the piston when the cylinder
is
lifted
to
a
certain height from the crankcase,
and
raise the
cylinder off the piston. Damage to them can be pre-
vented this way.
Cylinder
rankcase
n
\
fig.
5
-8-
Fig.
7
