Robin EH18V OHV - Page 17

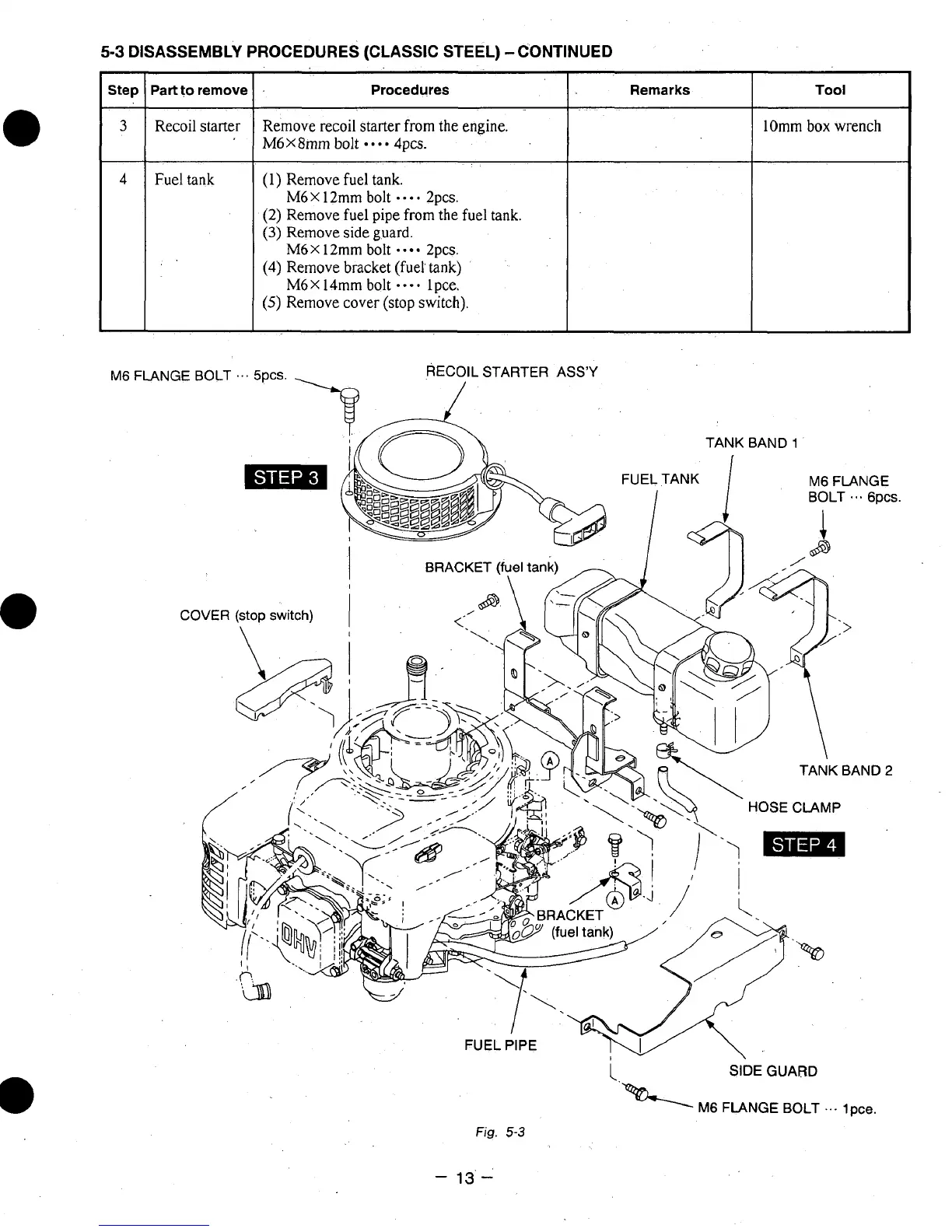

5-3 DISASSEMBLY PROCEDURES (CLASSIC STEEL) -CONTINUED
M6 FL
Part to remove
Recoil starter
Fuel tank
Procedures
Remove recoil starter from the engine.
M6X8mm bolt -0.. 4pcs.
(1) Remove fuel tank.
(2) Remove fuel pipe from the fuel tank.
(3) Remove side guard.
M6 X 12mm bolt * - Zpcs.
(4) Remove bracket (fuel tank)
M6X 14mm bolt
.... lpce.
(5) Remove cover (stop switch).
M6X 12mm bolt .-** 2pcs.
lOmm box wrench
RECOIL STARTER ASS’Y
M6 FLANGE
BOLT
-8- GPCS.
COVER (stop switch)
HOSE CLAMP
I. SIDE GUARD
M6 FLANGE BOLT . . . 1 pce.
Fig. 5-3
- 13’ -’
