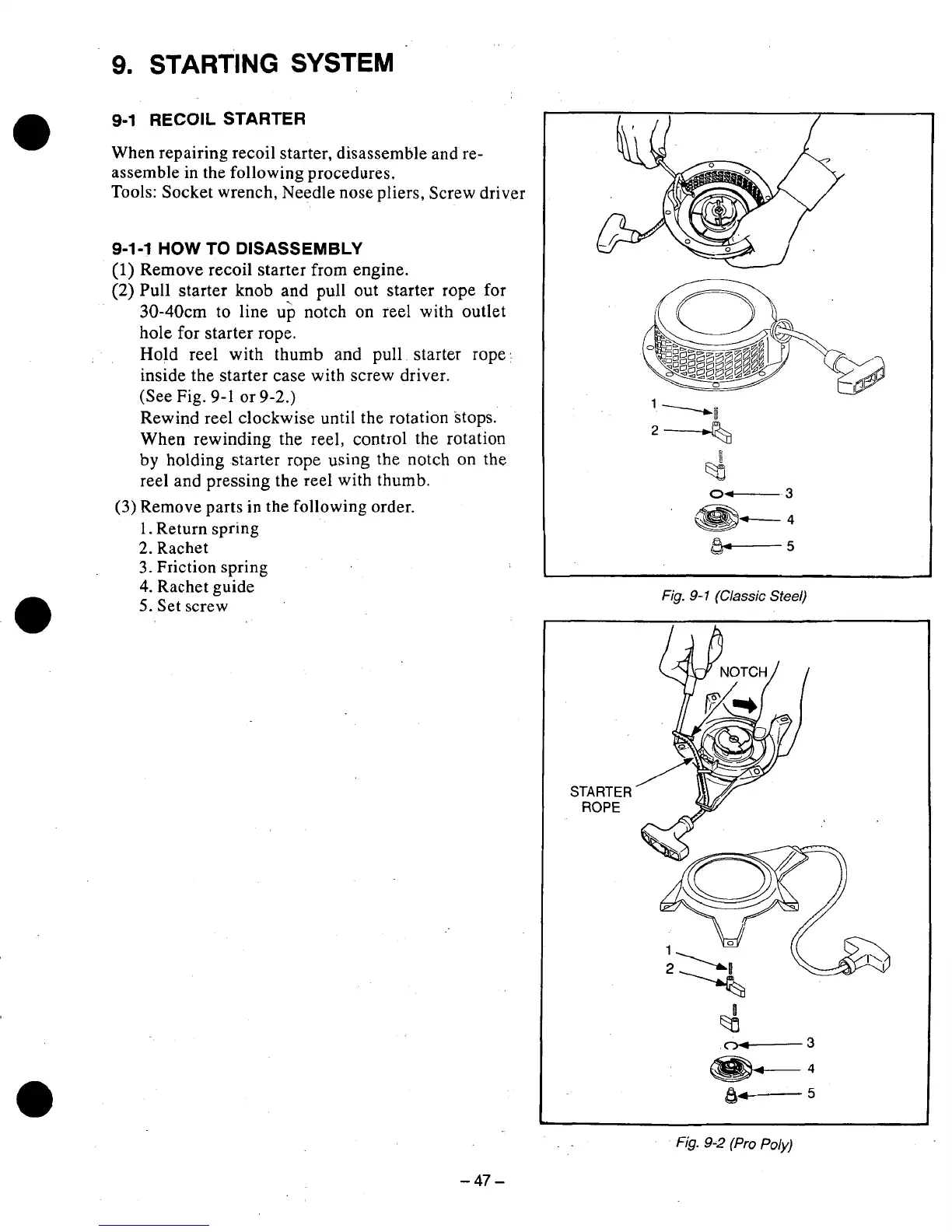

9. STARTING SYSTEM
9-1 RECOIL STARTER
When repairing recoil starter, disassemble and re-
assemble in the following procedures.
Tools: Socket wrench, Needle nose pliers, Screw driver
9-1-1 HOW TO DISASSEMBLY
(1) Remove recoil starter from engine.
(2) Pull starter knob and pull out starter rope for
30-40cm to line up notch on reel with outlet
hole for starter rope.
Hold reel with thumb and pull starter rope
inside the starter case with screw driver.
(See Fig.
9-1 or 9-2.)
Rewind reel clockwise until the rotation stops.
When rewinding the reel, control the rotation
by holding starter rope using the notch on the
reel and pressing the reel with thumb.
1. Return spring
2. Rachet
3. Friction spring
(3) Remove parts in the following order.
4. Rachet guide
5. Set screw
-47-
0-3
Fig. 9-1 (Classic Steel)
STARTER
ROPE
-3
4
&--"
Fig. 9-2 (Pro Poly)
