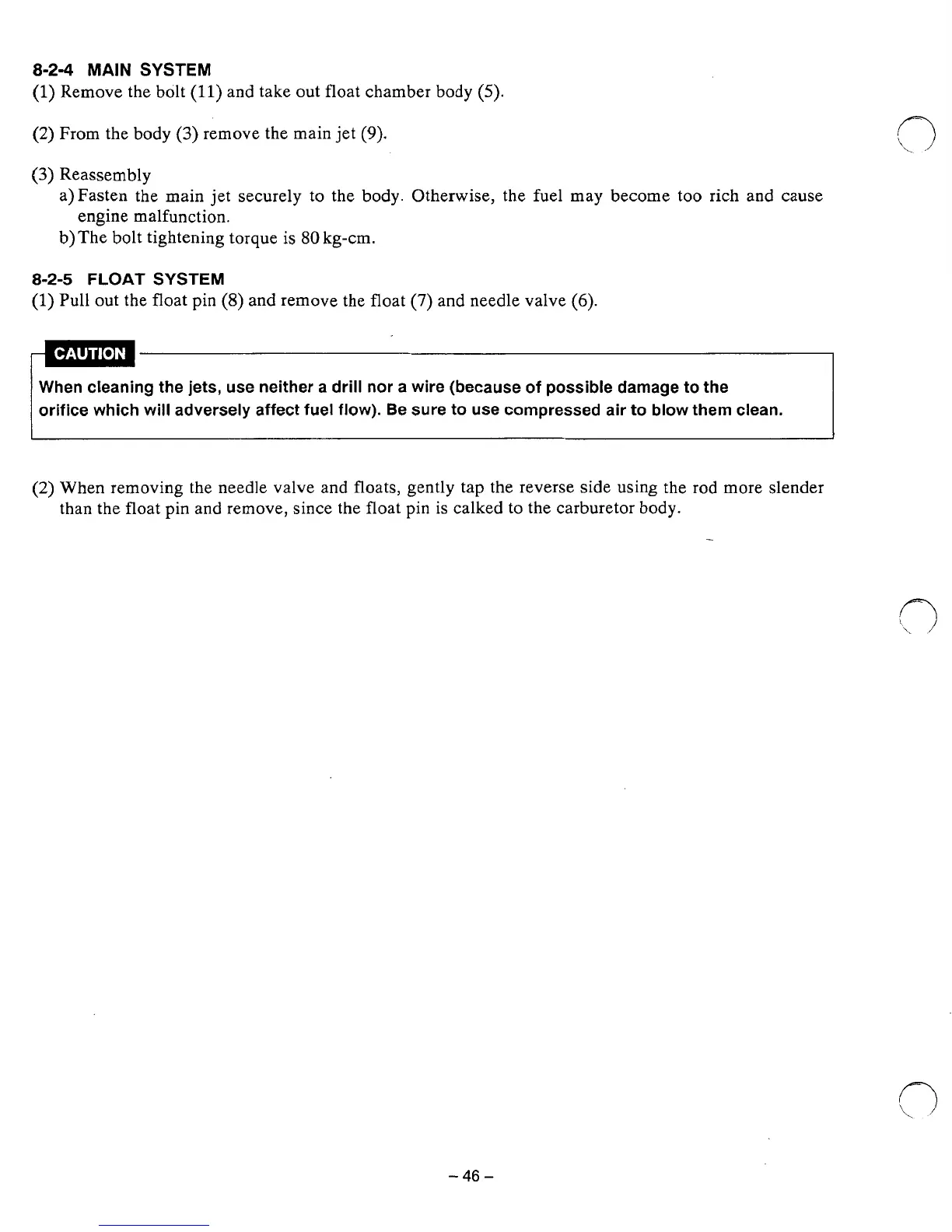

8-24
MAIN
SYSTEM
(1)
Remove the bolt
(11)
and take out float chamber body
(5).
(2)
From the body
(3)
remove the main jet
(9).
(3)
Reassembly
a)Fasten the main jet securely
to
the body. Otherwise, the fuel may become too rich and cause
b) The bolt tightening torque
is
80
kg-cm.
engine malfunction.
8-2-5
FLOAT
SYSTEM
(1)
Pull out the float pin
(8)
and remove the float
(7)
and needle valve
(6).
When cIeaning the jets, use neither a drill nor a wire (because of possible damage to the
orifice which will adversely affect fuel flow). Be sure to use compressed air
to blow them clean.
(2)
When removing the needle valve and floats, gently tap the reverse side using the rod more slender
than the float pin and remove, since the float pin is calked
to
the carburetor body.
-
