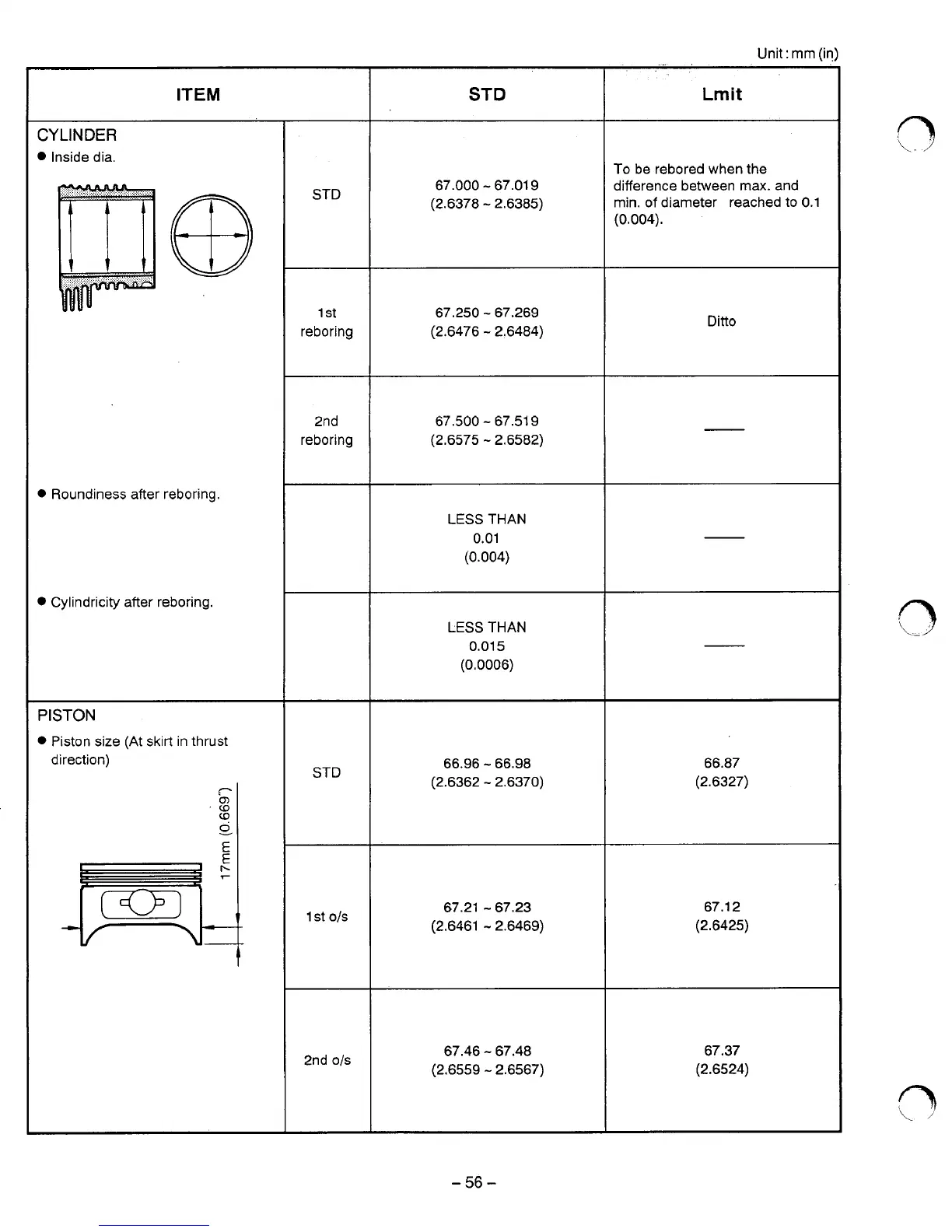

ITEM
CYLINDER
0 Inside dia.
0 Roundiness after reboring
0 Cylindricity after reboring.
PISTON
0 Piston size (At skirt in thrust
direction)
STD
1 st
reboring
2nd
reboring
STD
1 St Q/S
2nd 01s
T
STD
67.000 - 67.01 9
(2.6378
- 2.6385)
67.250
- 67.269
(2.6476
- 2.6484)
67.500
- 67.51 9
(2.6575
- 2.6582)
LESS THAN
0.01
(0.004)
LESS THAN
0.015
(0.0006)
66.96
- 66.98
(2.6362
- 2.6370)
67.21
- 67.23
(2.6461
- 2.6469)
67.46
- 67.48
(2.6559
- 2.6567)
Unit
: mm (ir
Lmit
To be rebored when the
difference between max. and
min. of diameter reached to 0.1
(0.004).
Ditto
66.87
(2.6327)
67.1 2
(2.6425)
67.37
(2.6524)
-56 -
