4-10 COOLING SYSTEM
The large fins on the flywheel provide sufficient
cooling air capacity for the inlet and exhaust area
and cylinder.
The cylinder baffle helps the cooling air flow effi-
ciently.

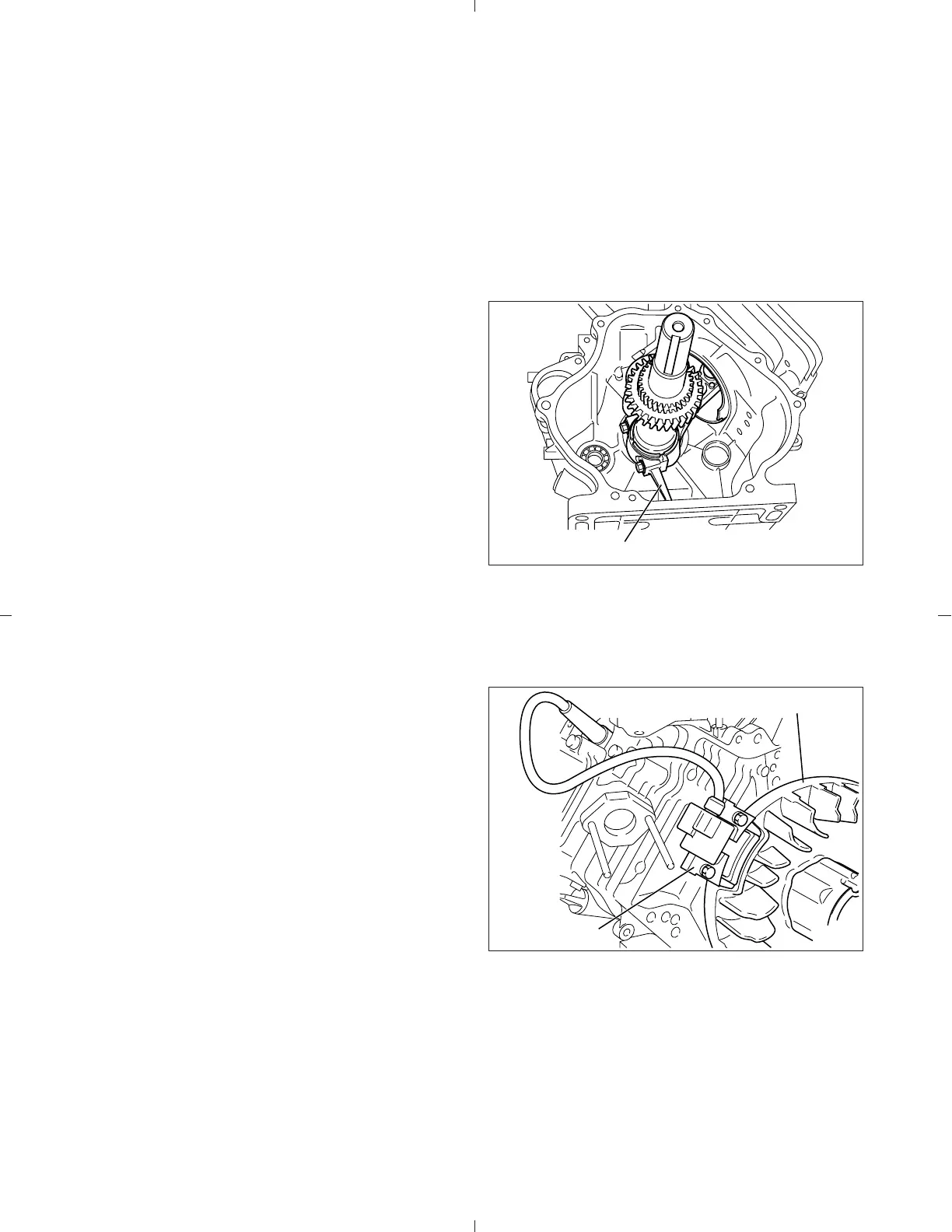

4-11 LUBRICATION SYSTEM
All the rotating and sliding parts are splash- lubri-
cated by the oil splasher on the connecting rod.
4-12 IGNITION SYSTEM
The ignition system is a transistor controlled mag-
neto system which consists of a flywheel and an
ignition coil with a built-in transistor mounted on
the crankcase.
This system has an automatic ignition timing ad-
vance characteristic for easy starting.
Fig. 4-10
Fig. 4-11
OIL SPLASHER
