41
-

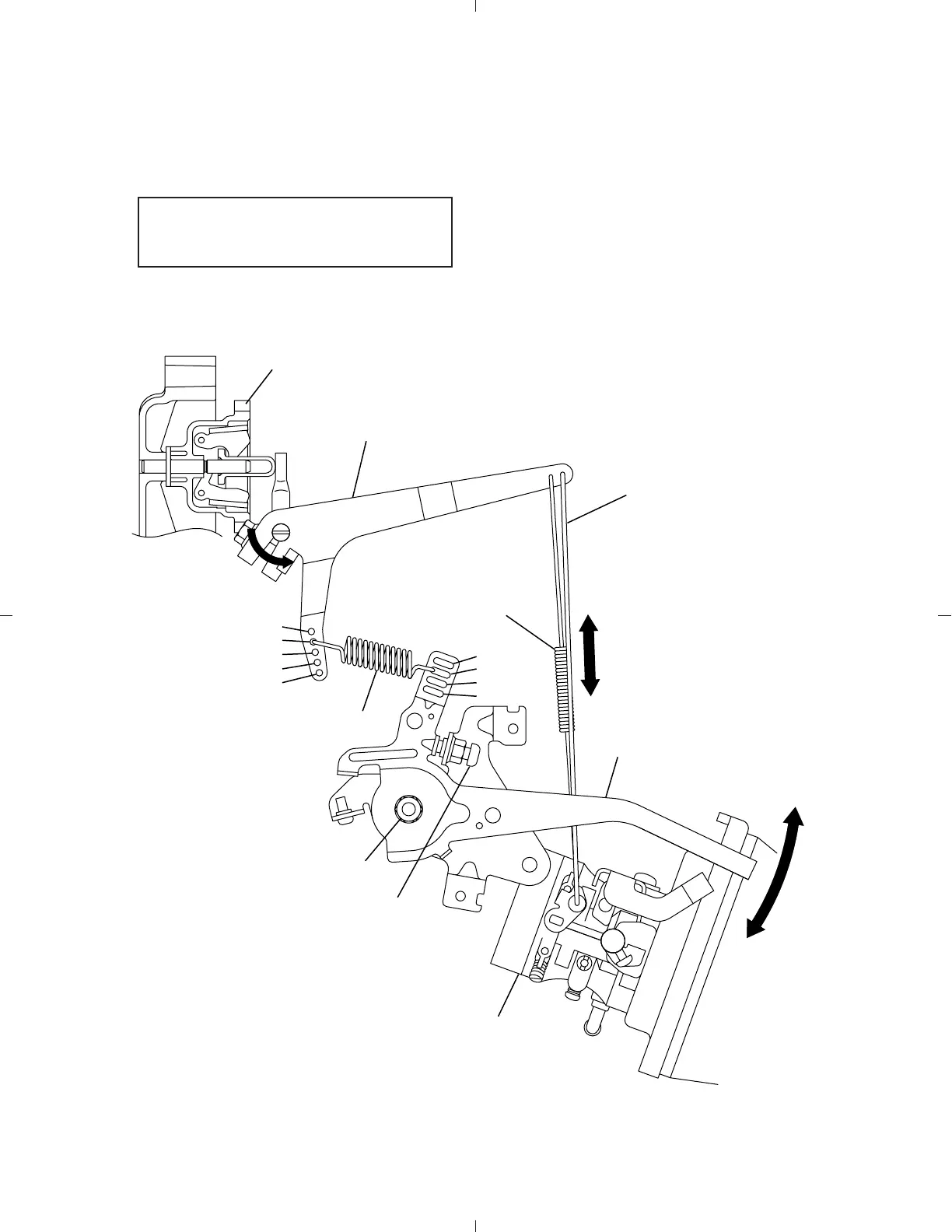

Fig. 5-42
GOVERNOR GEAR
GOVERNOR LEVER
GOVERNOR ROD
FULL CLOSE
HIGH SPEED
LOW SPEED
FULL OPEN
ROD SPRING
SPEED CONTROL LEVER
GOVERNOR SPRING
5
SELF LOCK NUT
ADJUSTING SCREW
CARBURETOR
4
3
2
1
D
C
B
A
(5) Install carburetor to cylinder head hooking governor rod to governor lever and throttle lever of carbu-
retor. Hook rod spring over governor rod.
(6) Attach air cleaner base to carburetor. Tighten two flange nuts and a bolt.
Connect breather pipe from rocker cover to cleaner base.
Tightening torque : 6.9 - 8.8 N
m
(70 - 90 kgfcm)
(5.1 - 6.5 ftlb.)
