– 10 –
Step Parts to remove Remarks and procedures Fasteners
17

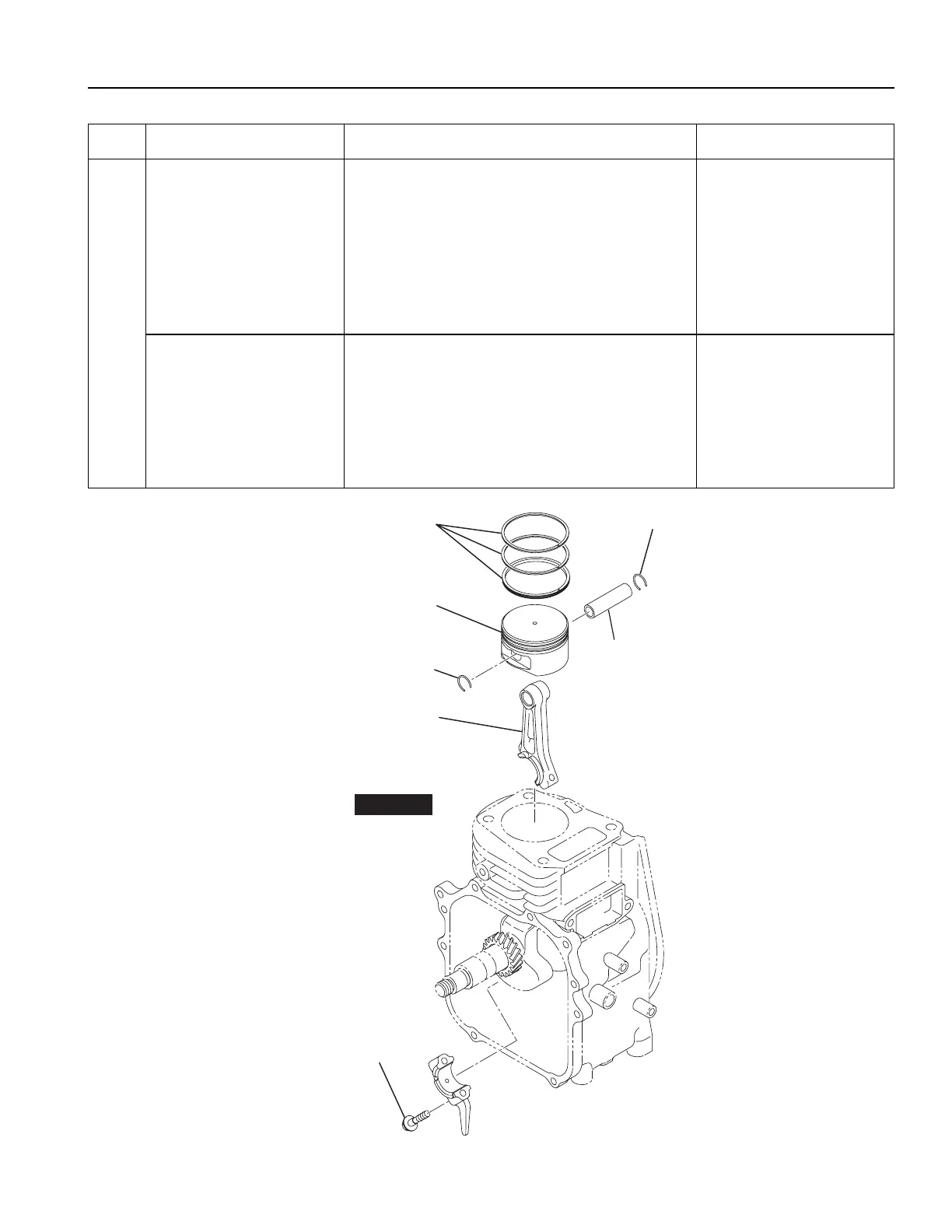

Connecting rod and
piston
(1) Remove connecting rod bolts and
connecting rod cap.
(2) Turn crankshaft until piston comes to top
dead center, push out connecting rod and
piston assembly through top of cylinder.
* Scrape off all carbon deposits that might
interfere with removal of piston from
upper end of cylinder.
M5 x 25 : 2 pcs.
8 mm box spanner
Piston and piston pin (1) Remove clips and piston pin to remove
connecting rod from piston.
(2) Remove piston rings from piston.
* Be careful not to damage the piston
and connecting rod.
Be careful not to break rings by spreading
too much or twisting.
: 2 pcs.
To Next Page
