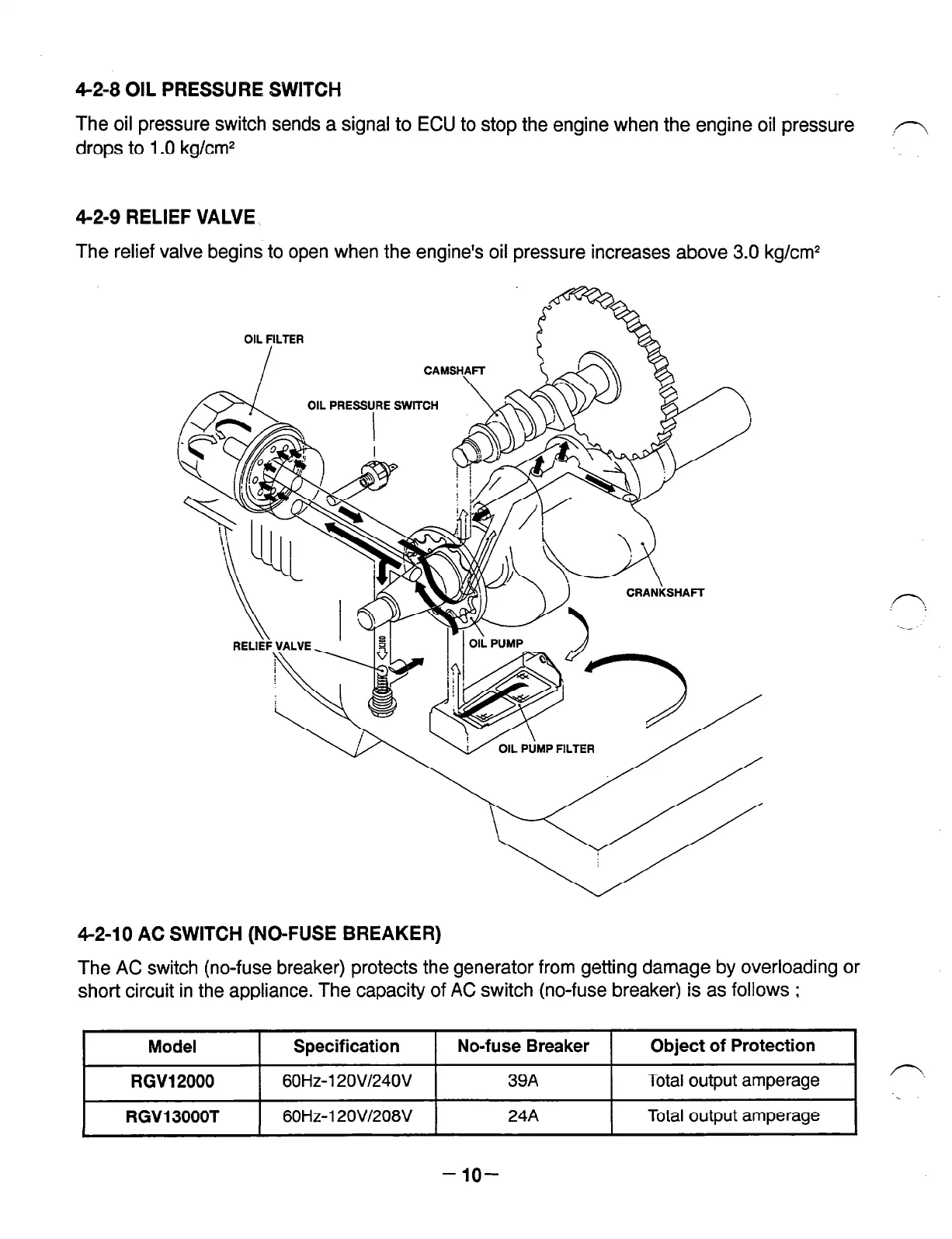

4-2-8 OIL PRESSURE SWITCH
The oil pressure switch sends a signal to ECU to stop the engine when the engine oil pressure
drops to 1 .O kg/cm2
.r?
4-2-9 RELIEF VALVE
The relief valve begins to open when the engine’s oil pressure increases above 3.0 kg/cm2
OIL FILTER
I CAMSHAFT
OIL
PRESSljRE SWITCH
OIL PUMP FILTER
4-2-10 AC SWITCH (NO-FUSE BREAKER)
The AC switch (no-fuse breaker) protects the generator from getting damage by overloading or
short circuit in the appliance. The capacity of AC switch (no-fuse breaker) is as follows ;
Model
Specification
RGV12000
60Hz-12OV/24OV
RGVl3000T
60Hz-12OV/208V
No-fuse Breaker
39A
24A
Object of Protection
Total output amperage
Total output amperage
