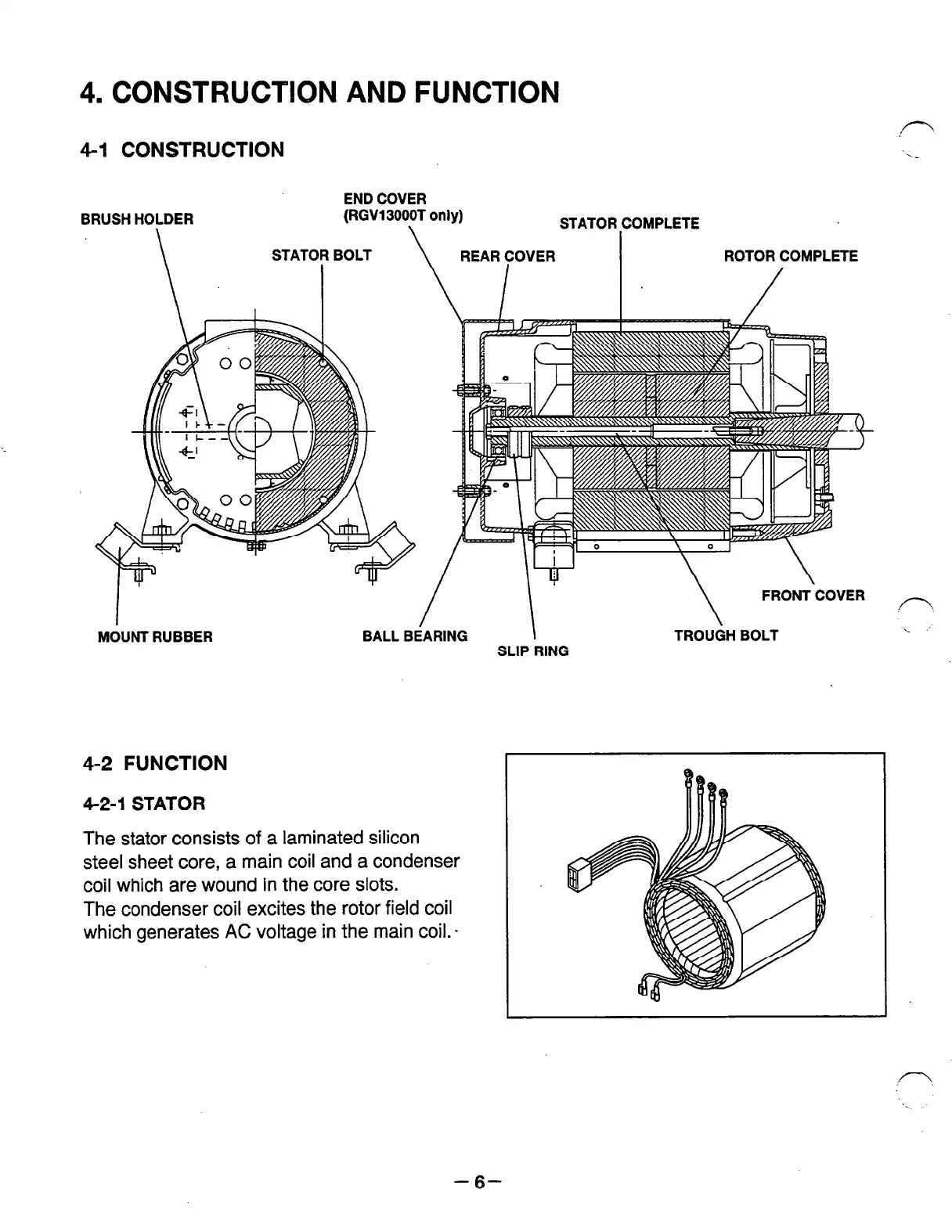

4. CONSTRUCTION AND FUNCTION
4-l CONSTRUCTION
END COVER
BRUSH HOLDER
(RGV13000T only)
\
STATOR COMPLETE
STATOR BOLT
\ REAR COVER I
ROTOR COMPLETE
‘y
/ I’
\
\
FRONT COVER
BALL BEARING
I
TROUGH BOLT
. .
SLIP RING
I
MOUNT RUBBER
4-2 FUNCTION
4-2-l STATOR
The stator consists of a laminated silicon
steel sheet core, a main coil and a condenser
coil which are wound in the core slots.
The condenser coil excites the rotor field coil
which generates AC voltage in the main coil. -
-6-
