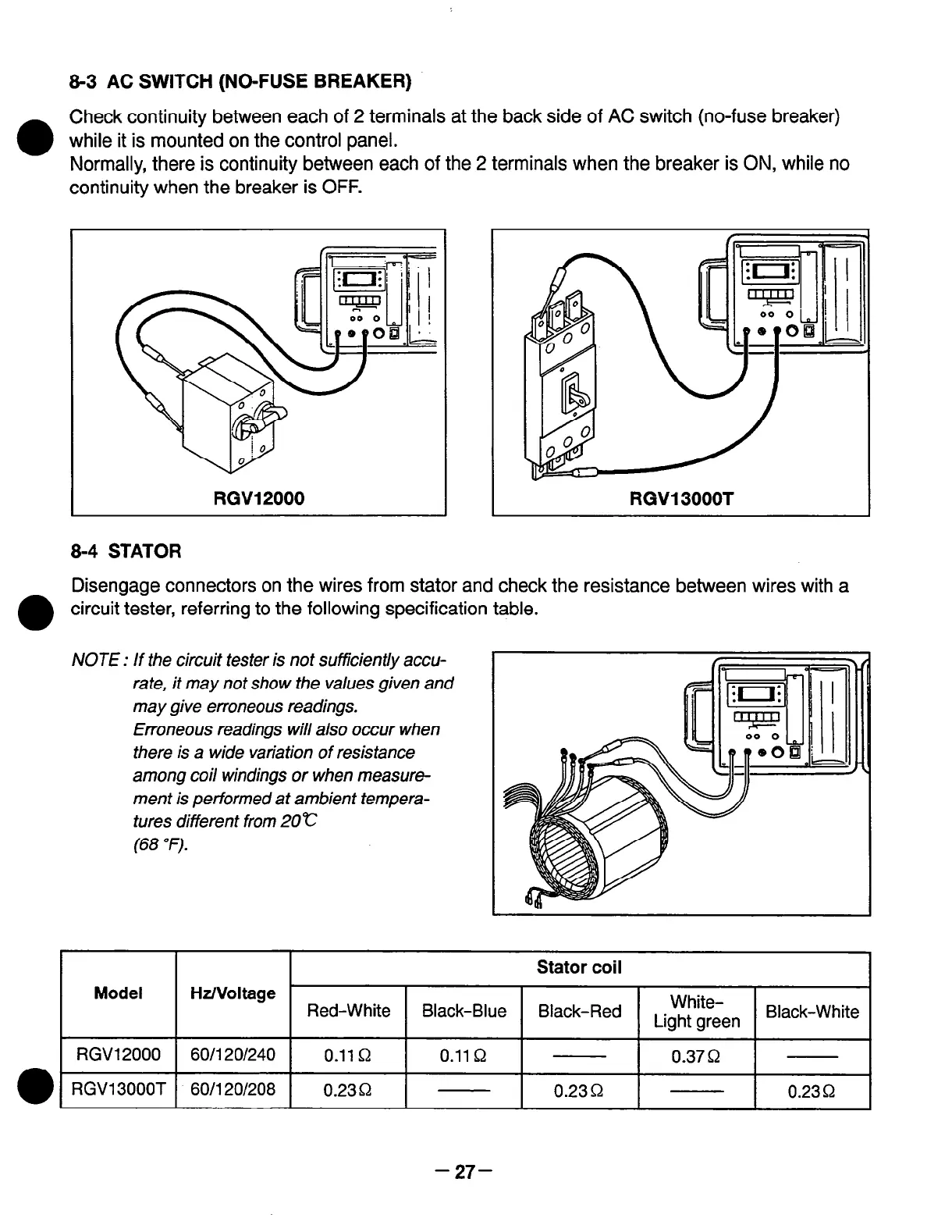

8-3 AC SWITCH (NO-FUSE BREAKER)
Check continuity between each of 2 terminals at the back side of AC switch (no-fuse breaker)
while it is mounted on the control panel.
Normally, there is continuity between each of the 2 terminals when the breaker is ON, while no
continuity when the breaker is OFF.
WY
RGV12000 RGV13000T
8-4 STATOR
Disengage connectors on the wires from stator and check the resistance between wires with a
circuit tester, referring to the following specification table.
NOTE : If the circuit tester is not sufficiently accu-
rate, it may not show the values given and
may give erroneous readings.
Erroneous readings will also occur when
there is a wide variation of resistance
among coil windings or when measure-
ment is performed at ambient tempera-
tures different from 20 “c
(68 “F).
Stator coil
Model Hz/Voltage
Red-White
Black-Blue
Black-Red
White-
Light green
Black-White
RGV12000 60/i 20/240
0.11 Q
0.11 Q -
0.37s2 -
RGV13000T 60/l 20/208
0.23Q -
0.23R - 0.23 Q
-27-
