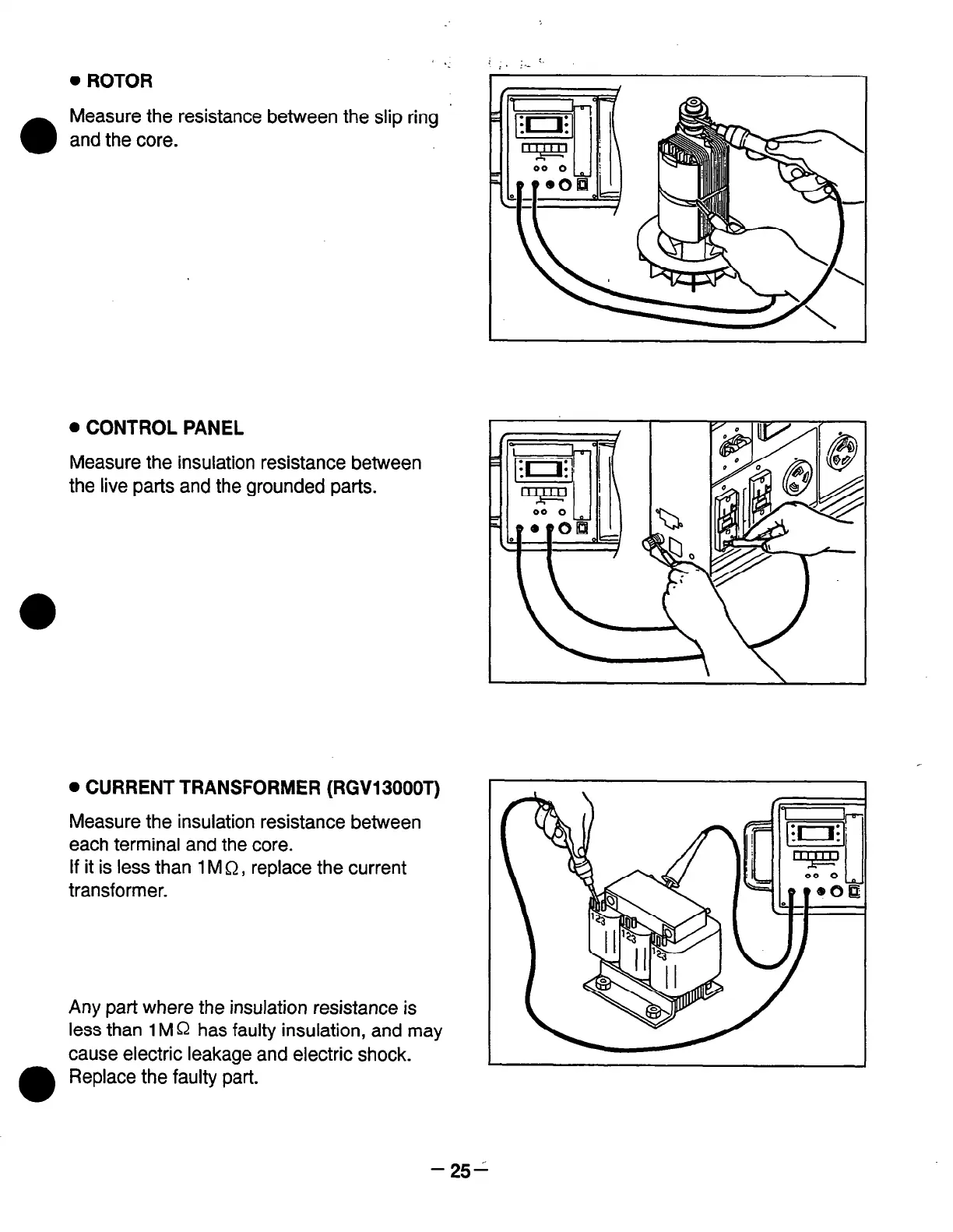

. ROTOR
a
Measure the resistance between the slip ring
and the core.
. CONTROL PANEL
Measure the insulation resistance between
the live parts and the grounded parts.
. CURRENT TRANSFORMER (RGV13000T)
Measure the insulation resistance between
each terminal and the core.
If it is less than 1 M Q, replace the current
transformer.
Any part where the insulation resistance is
less than 1 M Q has faulty insulation, and may
cause electric leakage and electric shock.
Replace the faulty part.
-225-
