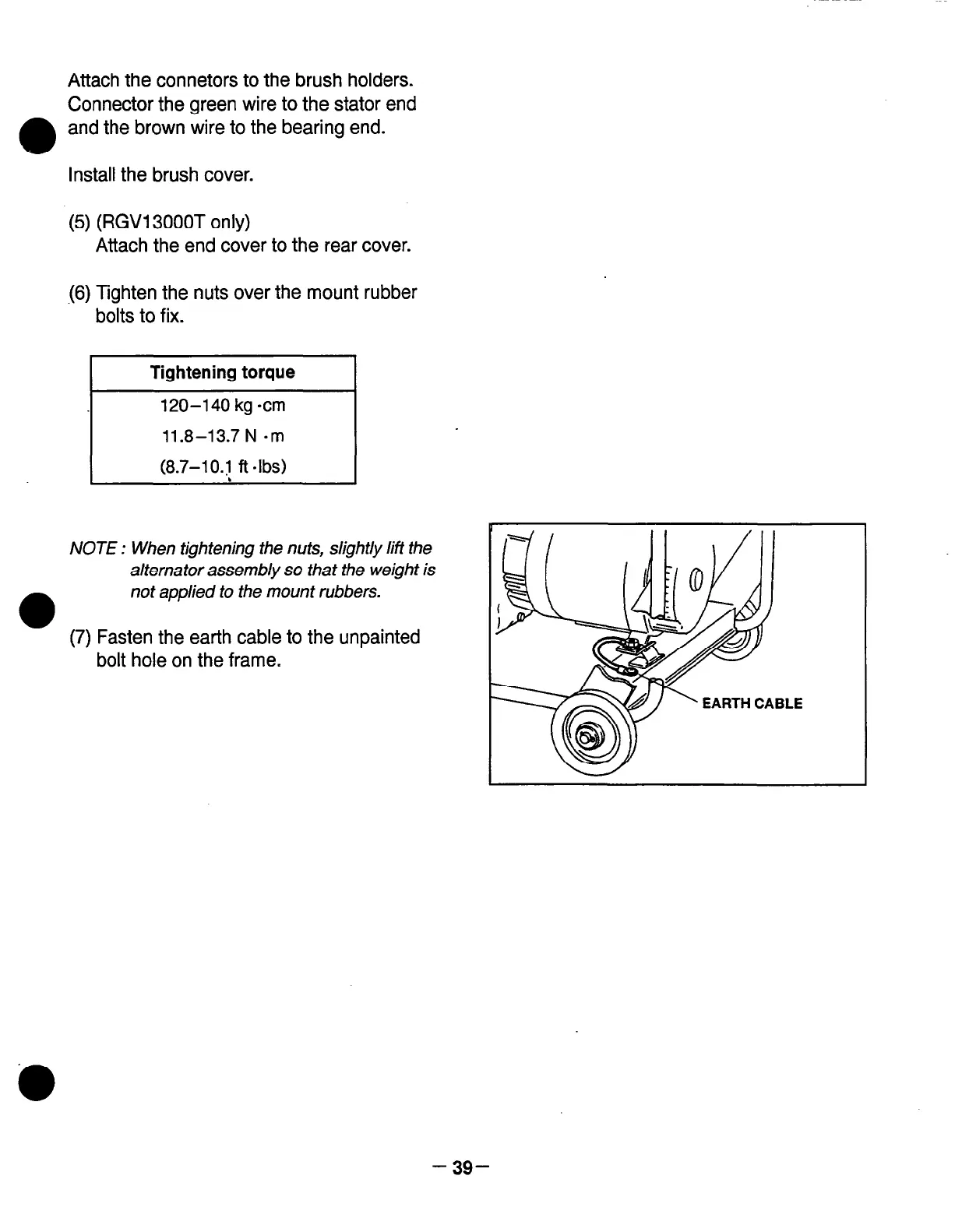

Attach the connetors to the brush holders.
Connector the green wire to the stator end
a
and the brown wire to the bearing end.
Install the brush cover.
(5) (RGV13000T only)
Attach the end cover to the rear cover.
(6) Tighten the nuts over the mount rubber
bolts to fix.
I
Tightening torque
I
1
120-140kg
-cm
11.8-13.7 N .rn
(8.7-10.1 ft-lbs)
NOTE : When tightening the nuts, slightly lift the
alternator assembly so that the weight is
not applied to the mount rubbers.
(7) Fasten the earth cable to the unpainted
bolt hole on the frame.
- 39-
