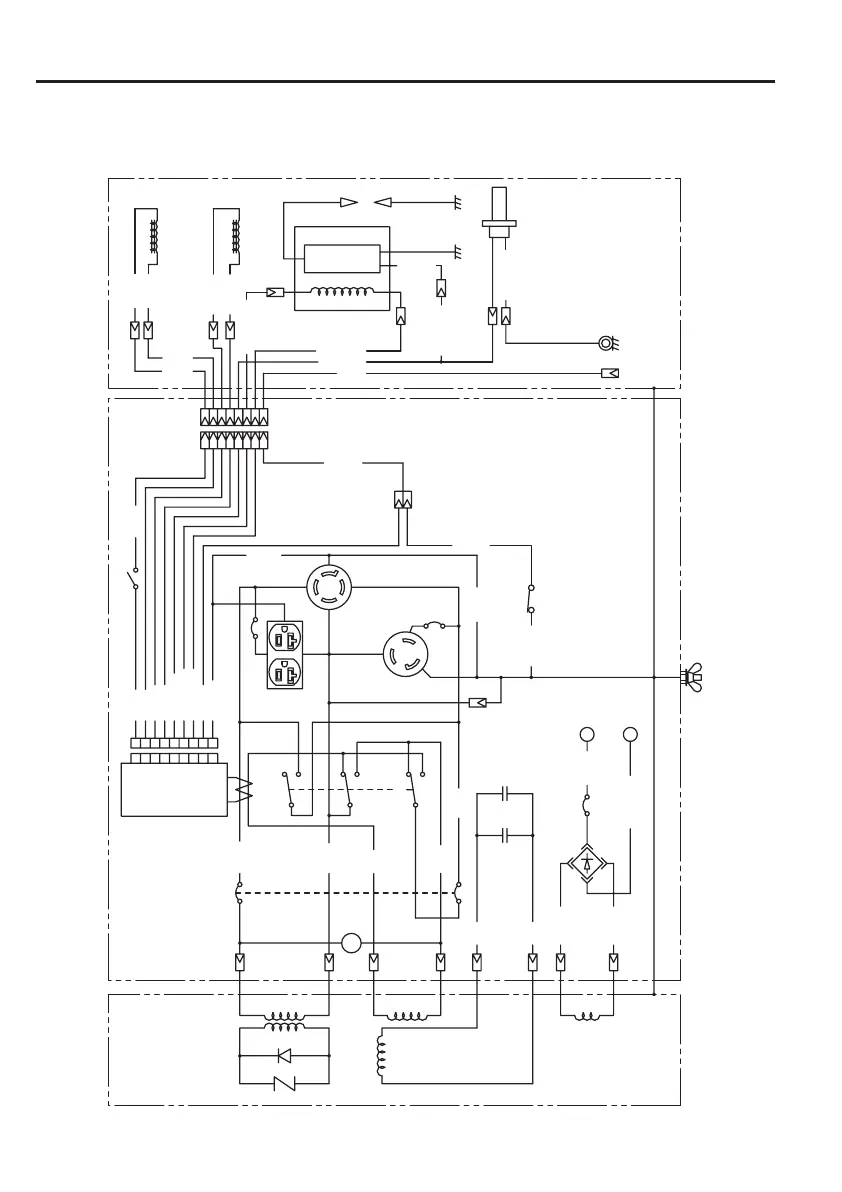

Robin RGV2800 - RGV6100 Wiring Diagram

− 36−
RGV6100
V
+
-
120V 120V
120/240V
8 1 9 5 3 6 7 4 2
8 9 1 5 3 6 7 4
REC1
REC3
W
W
REC2
GENERATOR CONTROL BOX
Field Winding
AC Winding 2 AC Winding 1
DC Winding
Diode
Surge absorber
20.75W 0.75W
0.75W 0.75Blu 0.75Blu 0.75Blk/W 0.75Grn/W 0.75Grn/W 0.75Blk 0.75Grn
2.0Grn
Auxiliary Winding for condenser
2.0Blu 2.0Blk
No-fuse breaker
2.0R
2.0W
Voltmeter
2.0Y 2.0Y 1.25Brn 1.25Brn
Condenser
Condenser
2.0W
1.25Or
1.25Brn/W
DC output terminal
Circuit breaker
Diode stack Assy
Earth (Ground) terminal
Full power switch 120/240V
Idle
control
unit
and
Fuel
cut unit
AC output
receptacle
(
120V
)
AC output
receptacle
(
120/240V
)
AC output
receptacle
(
120V
)
No-fuse
breaker
Idle control switch
0.75Blk
ENGINE
0.75W 0.75W
0.75W
0.75W
Solenoid
0.75Blu 0.75Blu
Fuel cut solenoid
0.75Grn/W
0.75Blk
0.75Blk/W
Oil sensor
0.75Grn/Y
Charge coil
Ignition coil
0.75Y
0.75Blk/W
0.75Grn/W
Spark plug
0.75Grn
0.75Blk
Engin switch
W
2.0Grn
No-fuse breaker
