BATTERY INSTALLTION (Electric starter model)
Recommended Battery: A capacity of 12V-24AH or larger.
Death, personal injury and/or property damage may occur unless
instructions are followed carefully.
■
Use battery of recommended capacity.
■
Turn the starter switch to the "STOP" position when mounting or
dismounting battery. When mounting battery, connect the positive (+)
cable first and then the negative (
-
) cable to the battery. Be careful not to
short battery cables. When dismounting battery, disconnect negative (
-
)
cable first.
RED CABLE : To positive (+) terminal
BLACK CABLE : To negative (
-
) terminal
■
Should the connection be made in incorrect manner, the generator will
be broken.
■
Tighten bolts and nuts on terminals securely so they will not be
loosened by vibration.
■
Disconnect battery cables when charging battery.
WARNING
RED CABEL
+
RED CABEL
+
-
+

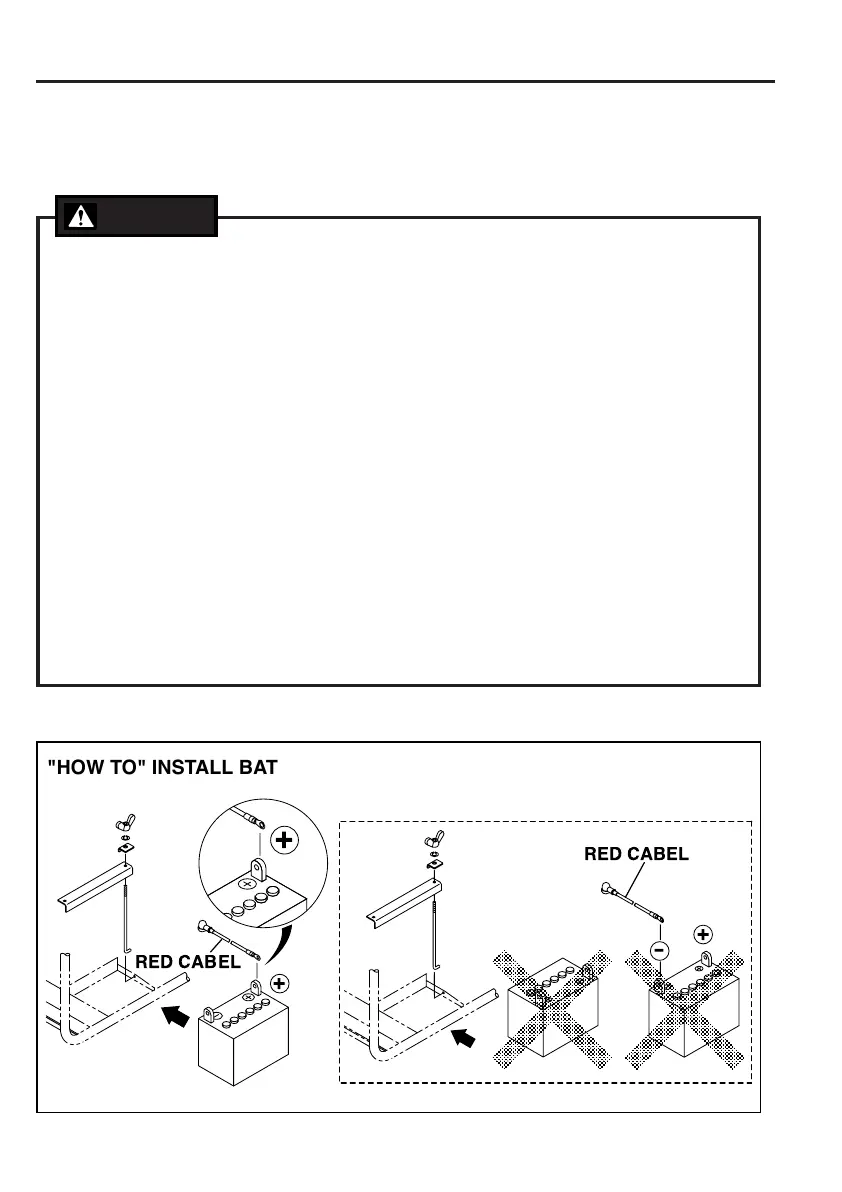

"HOW TO" INSTALL BATTERY (See "OPTIONAL PARTS")
