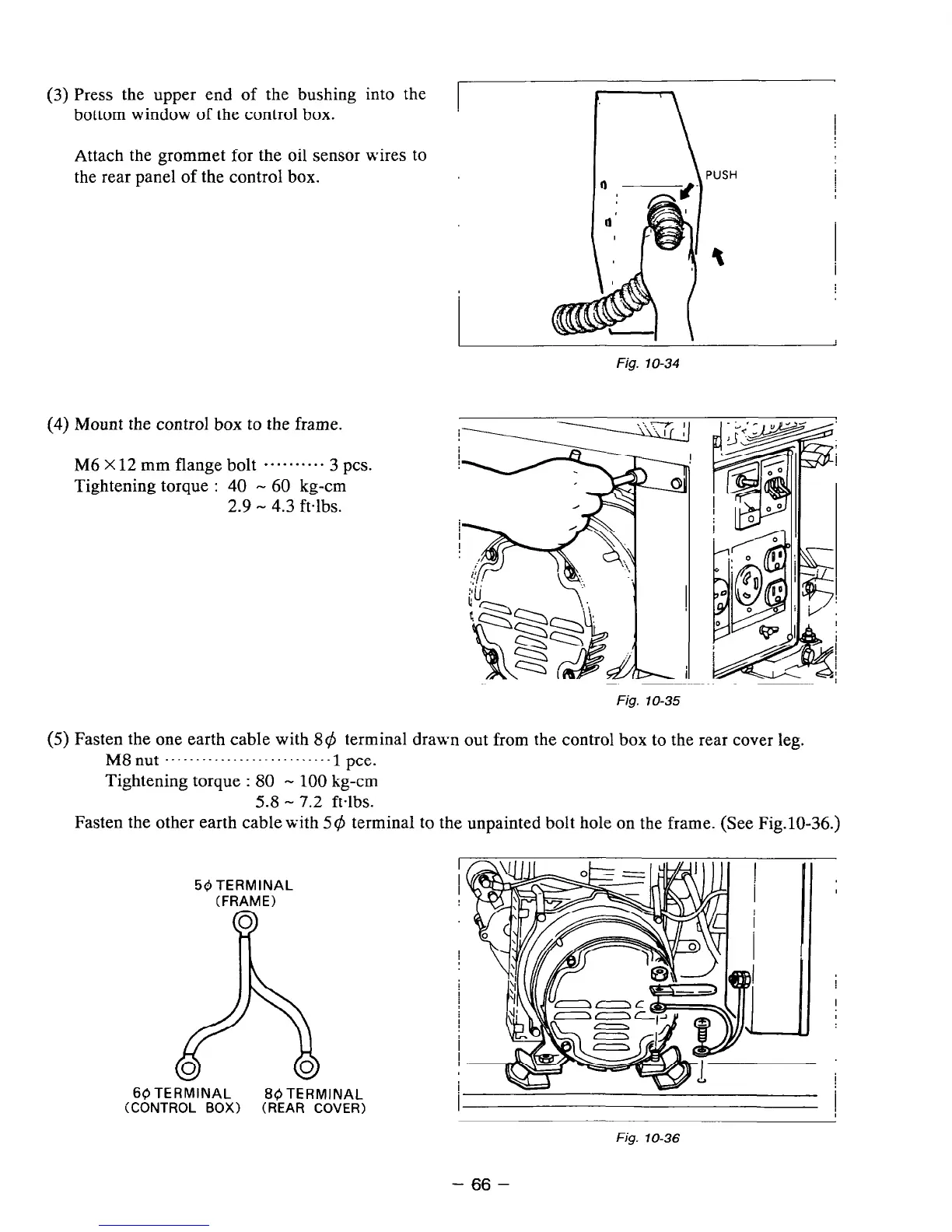

(3) Press the upper end of the bushing into the
bottom window of the control box.
Attach the grommet for the oil sensor wires to
the rear panel of the control box.
(4) Mount the control box to the frame.
M6
X
12 mm flange bolt *-.*..*..- 3 PCS.
Tightening torque : 40 - 60 kg-cm
2.9 - 4.3 ftlbs.
Fig. 1 O-34
Fig. lo-35
(5) Fasten the one earth cable with 86 terminal drawn out from the control box to the rear cover leg.
M8 nut
. . . . . . . . . . . . . . . . . . . . . . . . . . .
1 pee.
Tightening torque : 80 - 100 kg-cm
5.8 - 7.2 ftlbs.
Fasten the other earth cable with 54 terminal to the unpainted bolt hole on the frame. (See Fig.lO-36.)
56 TERMINAL
(FRAME)
0
A
0
0
60 TERMINAL
80 TERMINAL
(CONTROL BOX) (REAR COVER)
I
I
Fig. 70-36
