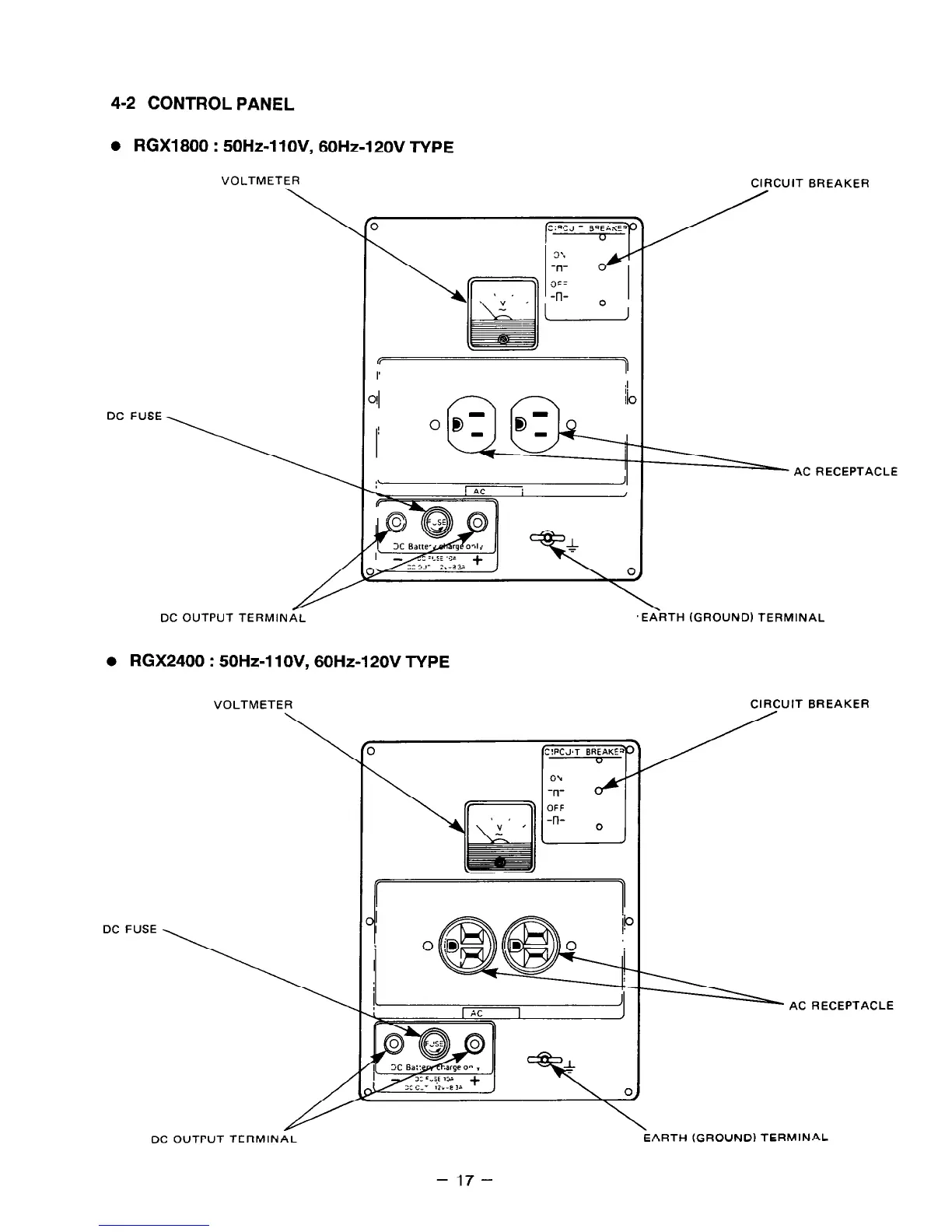

4-2 CONTROL PANEL
l RGXI 800 : SOHz-11 OV, 6OHz-120V TYPE
DC
VOLTMETER
FUSE
CIRCUIT BREAKER
- AC RECEPTACLE
\
DC OUTPUT TERMINAL
‘EARTH (GROUND) TERMINAL
l
RGX2400 : SOHz-11 OV, 60Hz-120V TYPE
VOLTMETER
0
CIRCUIT BREAKER
+ AC RECEPTACLE
\
DC OUTPUT TERMINAL
EARTH (GROUND) TERMINAL
-17-
