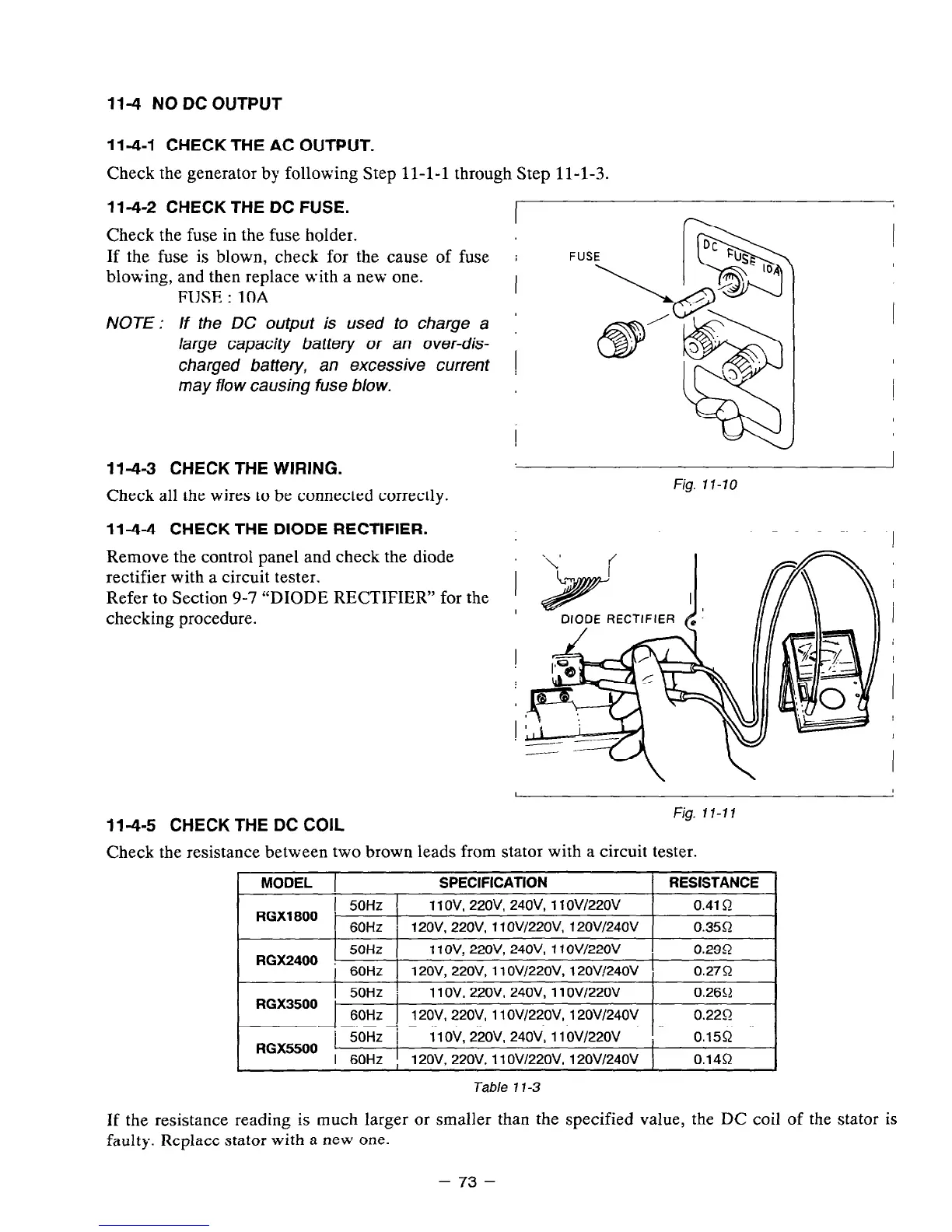

114 NO DC OUTPUT
114-I CHECK THE AC OUTPUT.
Check the generator by following Step 11-1-1 through Step 11-1-3.
1 l-4-2 CHECK THE DC FUSE.
Check the fuse in the fuse holder.
If the fuse is blown, check for the cause of fuse
blowing, and then replace with a new one.
FUSE : 10A
NOTE I If the DC output is used to charge a
large capacity battery or an over-dis-
charged battery, an excessive current
may flow causing fuse blow.
1 l-4-3 CHECK THE WIRING.
Check all the wires to be connected correctly.
1144 CHECK THE DIODE RECTIFIER.
Remove the control panel and check the diode
rectifier with a circuit tester.
Refer to Section 9-7 “DIODE RECTIFIER” for the
checking procedure.
114-5 CHECK THE DC COIL
Fig. 11-10
Fig. 17-77
Check the resistance between two brown leads from stator with a circuit tester.
MODEL ( SPECIFICATION
RESISTANCE
RGX1800
! 50Hz
11 OV, 22OV, 24OV, 11 OV/22OV
0.41 R
60Hz 8 12OV, 22OV, 1 lOVt22OV, 12OVl24OV
0.35Q
50Hz
RGX2400
11 OV! 22OV, 24OV, 11 OVI22OV
0.299
) 60Hz
12OV, 22OV, 11 OV!22OV, 12OV!24OV
0.27Q
RGX3500
1 50Hz i 11 OV. 220V. 24OV, 11 OV122OV
0.26Q
60Hz 12OV, 22OV, 11 OV/22OV, 12OVl24OV
0.220
j 50Hz /
11 OV, 220V. 24OV, 11 OVl22OV
0.15R
RGX5500 L
I 60Hz ’ 12OV, 22OV, 1 lOV/22OV, 12OVl24OV
0.14R
Table 11-3
If the resistance reading is much larger or smaller than the specified value, the DC coil of the stator is
faulty. Replace stator with a new one.
- 73 -
