4. GENERAL DESCRIPTION OF THE GENERATOR

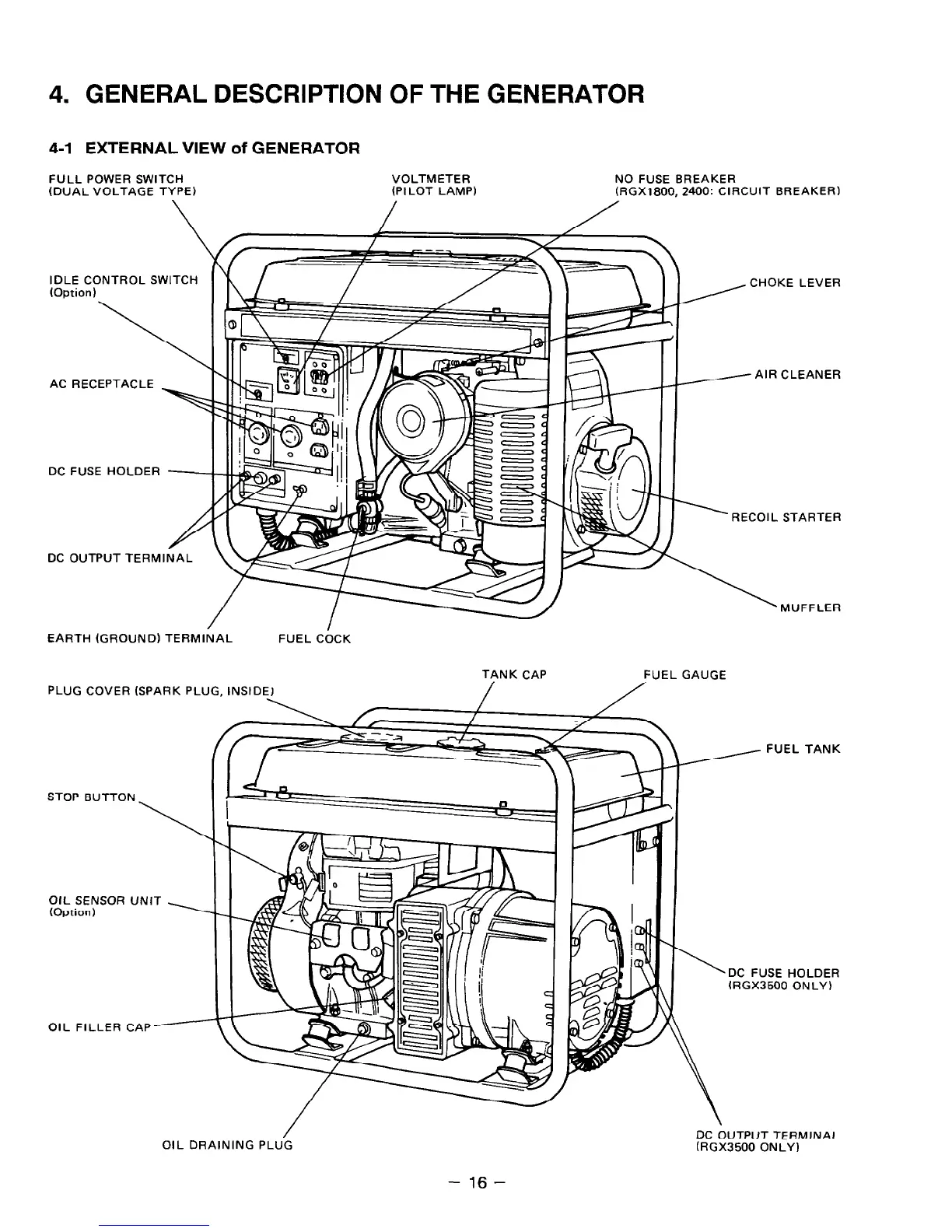

4-1 EXTERNAL VIEW of GENERATOR
FULL POWER SWITCH
(DUAL VOLTAGE TYPE)
IDLE CONTROL SWITCH
(Option)
AC RECEPTACLE
3
DC FUSE HOLDER
---I-
4
DC OUTPUT TERMINAL
VOLTMETER
NO FUSE BREAKER
(PI LOT LAMP)
(RGXl800.2400: CIRCUIT BREAKER)
/
/
I
/
/
I .
/
CHOKE LEVER
, AIR CLEANER
1 RECOIL STARTER
1 MUFFLER
EARTH (GROUND) TERMINAL
FUEL C&K
PLUG COVER (SPARK PLUG, INSIDE1
.
TANK CAP
/
FUEL GAUGE
STOP BUTTON
\
OIL SENSOR UNIT
(Option)
OIL FILLER CAP-
FUEL TANK
DC FUSE HOLDER
(RGX3500 ONLY)
/ DC OUTPUT TERMINAL
OIL DRAINING PLUG (RGX3500 ONLY1
-16-
