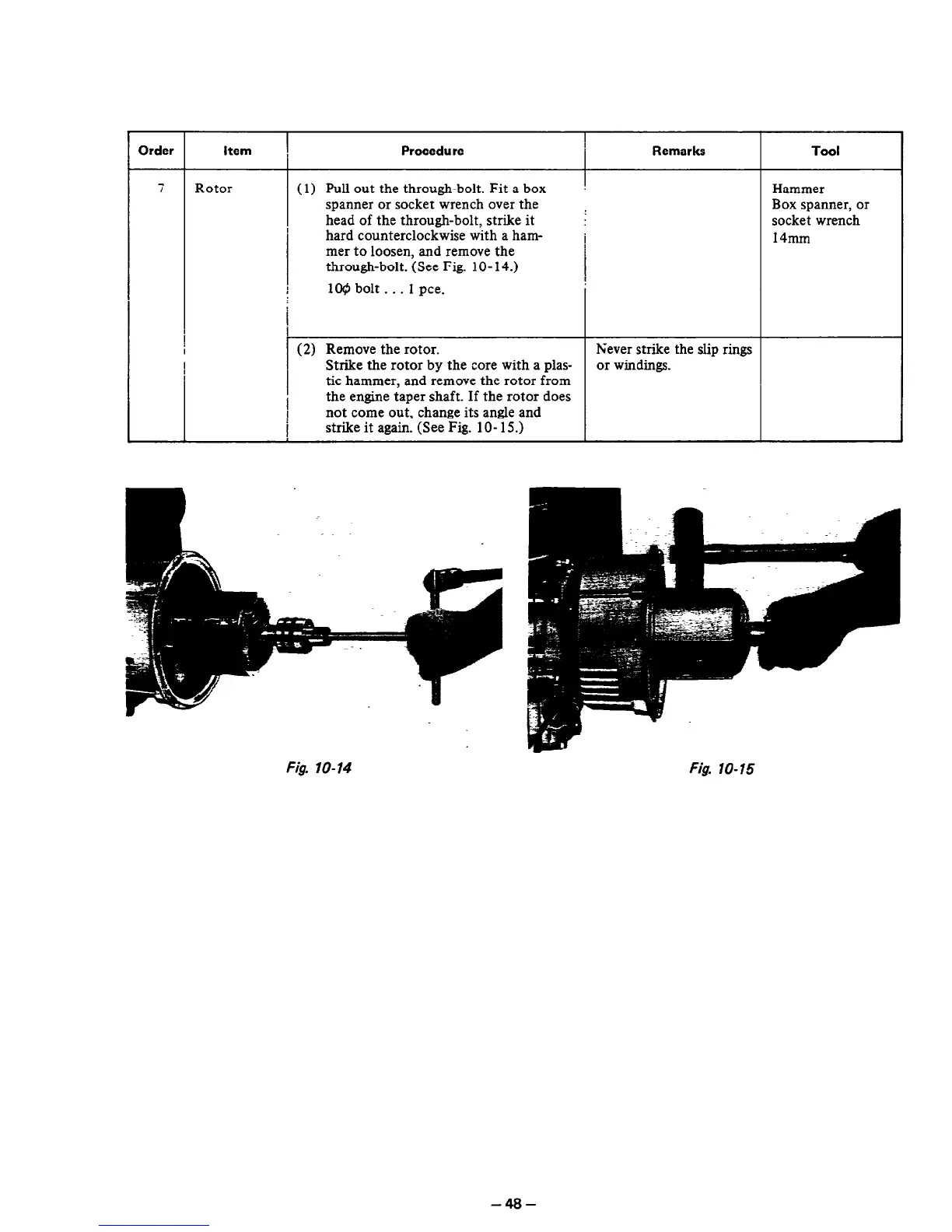

Order
item , Procedure Remarks Tool
7
Rotor
(1) Pull out the through-bolt. Fit a box Hammer
spanner or socket wrench over the
Box spanner, or
head of the through-bolt, strike it
i socket wrench
hard counterclockwise with a ham-
14mm
mer to loosen, and remove the
through-bolt. (See Fig. 10-14.)
1Og bolt . . . 1 pee.
(2) Remove the rotor.
Never strike the slip rings
Strike the rotor by the core with a plas-
or windings.
tic hammer, and remove the rotor from
the engine taper shaft. If the rotor does
not come out, change its angle and
!
strike it again. (See Fig. lo- 15.)
Fig. 10-14
Fig. lo-15
- 48 -
