KEY SWITCH
NUT
CONTROL BOX
I
(TO ENGINE SIDE)
TO CONTROL BOX
/
I
STRAINER
STRAINER BRACKEi

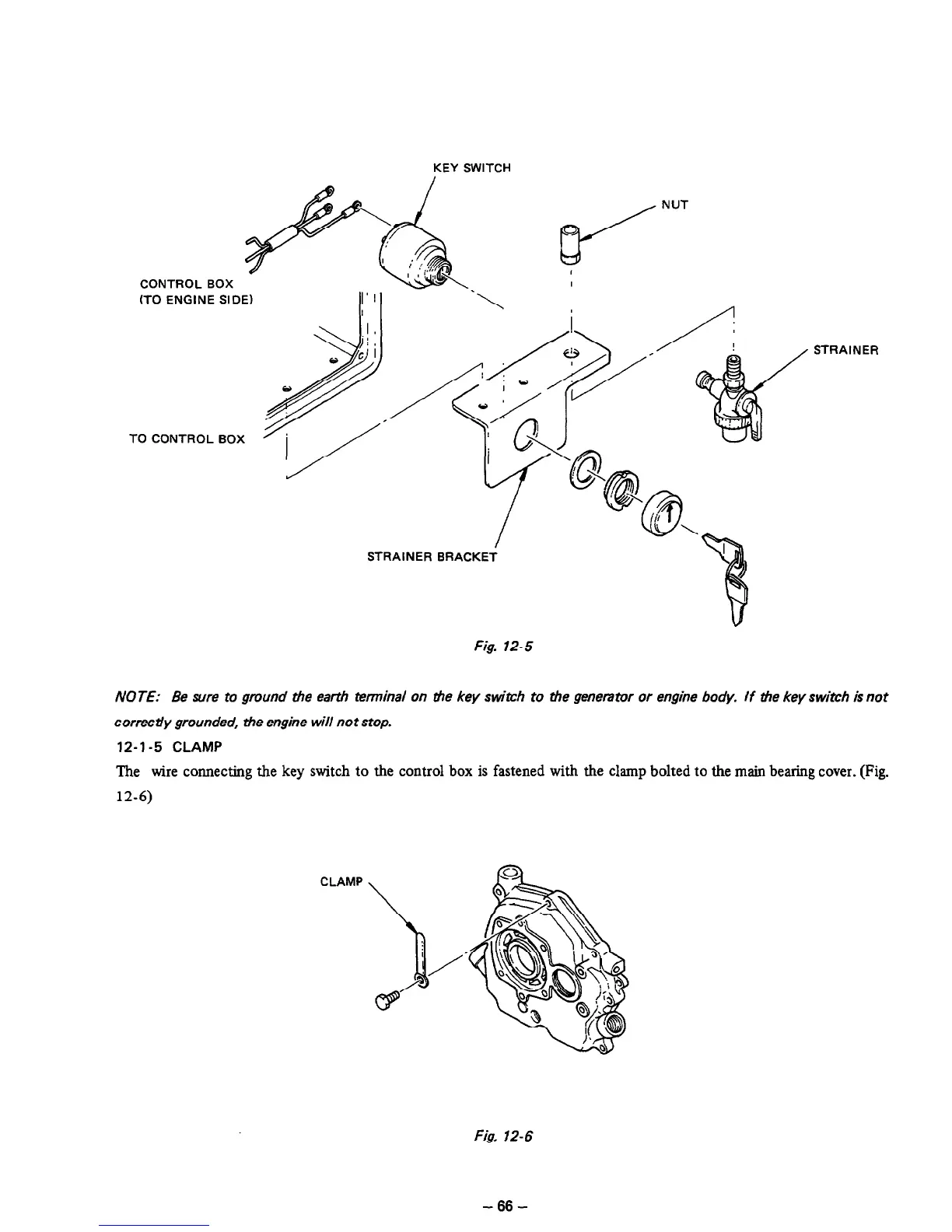

Fig. 12-5
AfOE: Be sure to ground the earth terminal on tie key switch to tie generator or engine body. If the key switch is not
correctly grounded, the engine will not stop.
12-l -5 CLAMP
The wire connecting the key switch to the control box is fastened with the clamp bolted to the main bearing cover. (Fig.
12-6)
CLAMP
Fig. 12-6
