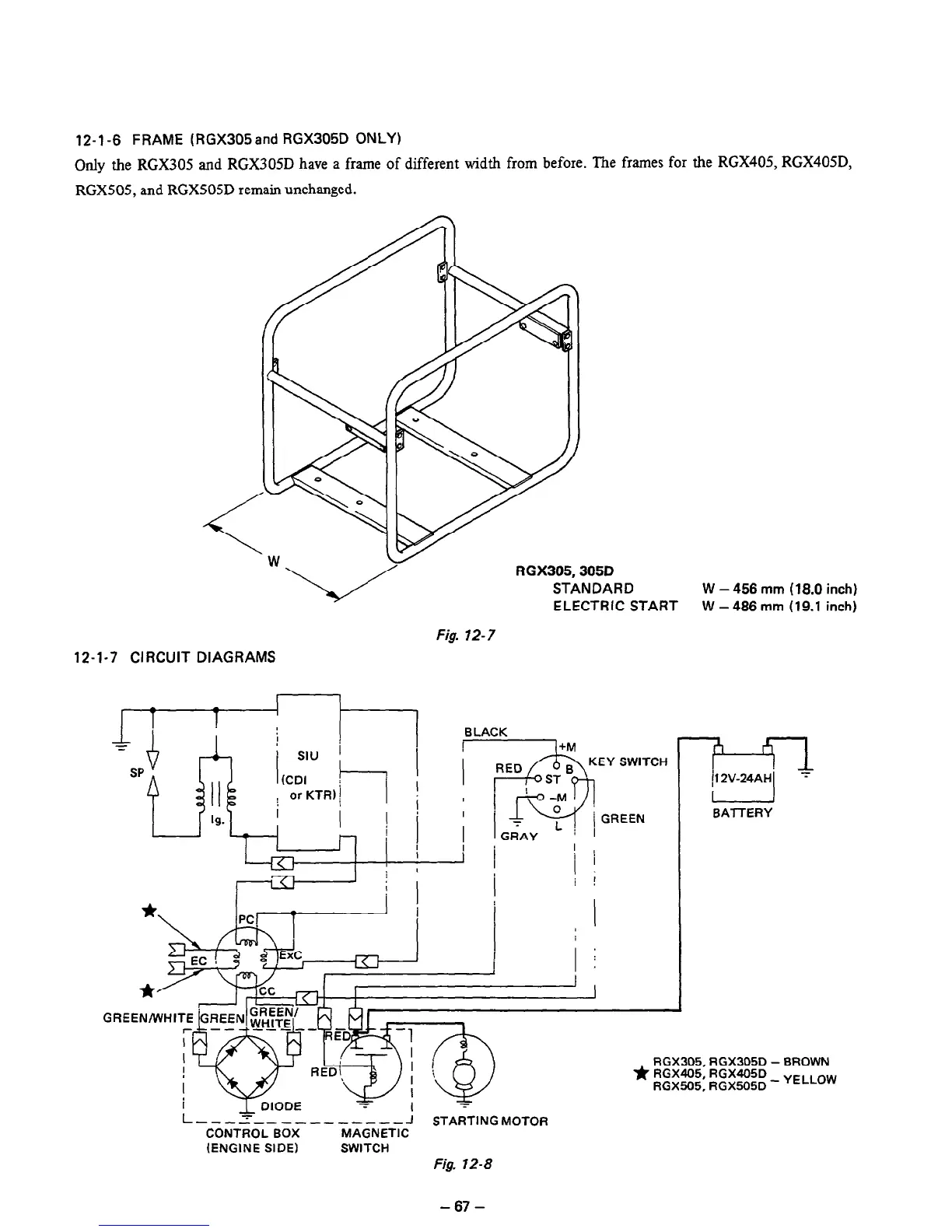

12-l-6 FRAME (RGX305and RGX305D ONLY)
Only the RGX305 and RGX305D have a frame of different width from before. The frames for the RGX405, RGX405D,
RGX505, and RGX505D remain unchanged.
RGX305,305D
STANDARD
ELECTRIC START
Fig. 12-7
12-l-7 CIRCUIT DIAGRAMS
BLACK
1-A”
- -3 r-? i SIU ;
I I
RFn &KEY SWITCH
or
i(CDI 1 I ; 1
, orKTR)/
i
i !
I I
I
W - 456 mm (18.0 inch)
W - 486 mm (19.1 inch)
BATTERY
STARTING MOTOR
CONTROL BOX
MAGNETIC
- BROWN
-YELLOW
(ENGINE SIDE)
SWITCH
Fig. 72-8
- 67 -
