SmartPAT 5500
Indicators
Bleeper (internal) Sounds to indicate that a test has been completed or failed (double bleep).
Display Dot matrix Liquid Crystal Display, displays up to 40 characters at a time,
in two lines, to show the following:
Test type selected
Test in progress messages
Test results
Warning messages.
Help messages

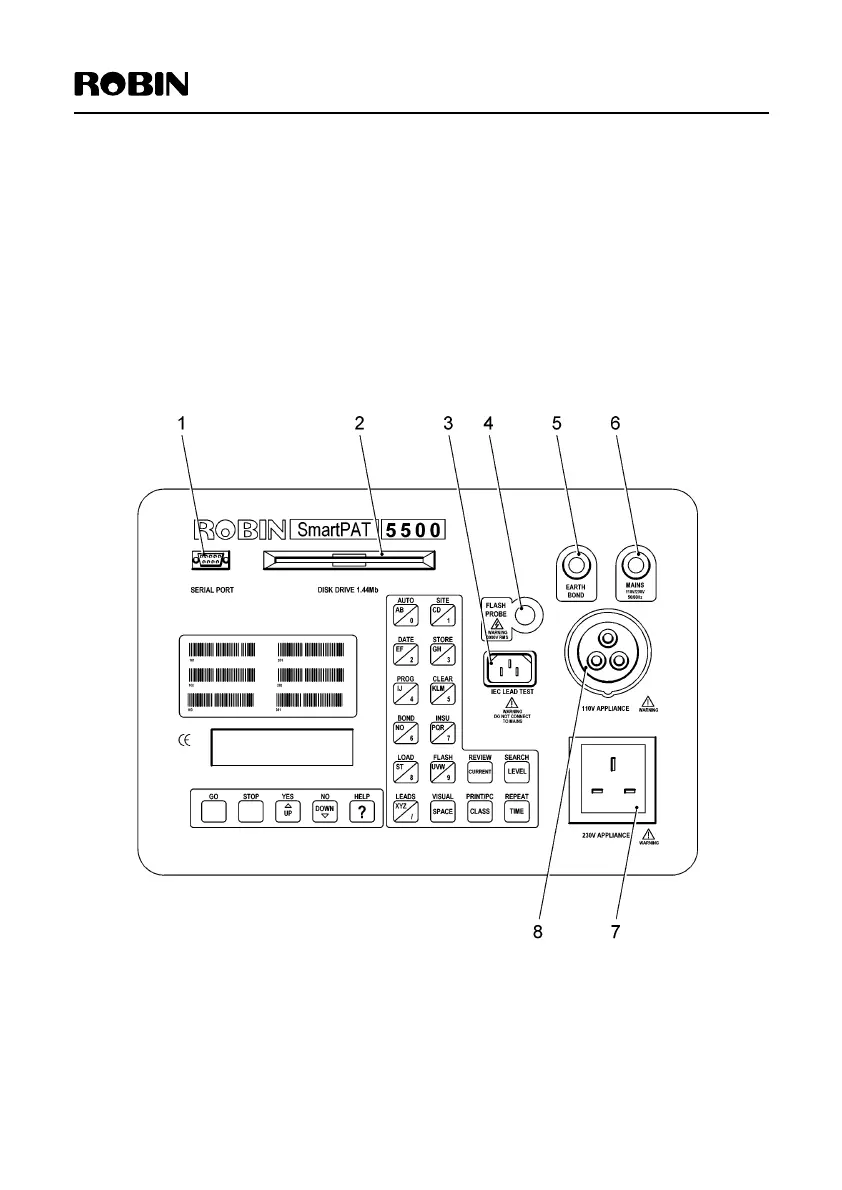

Figure 2 Controls and Accessories
