Technical Specifications
The technical specifications of the SmartPAT 5500 are as follows:
Mains input supply
Voltage 100 V to 120 V rms at 50/60 Hz ±10%
207 V to 255 V rms at 50/60 Hz ±10%
Power consumption 30 W maximum (quiescent)
Earth leakage current 3 mA maximum
Display
Type 2 line, 20 characters per line Liquid Crystal Display (LCD)
Character Height 5.5 mm
Character width 3 mm
Viewing Angle ‘6 0’clock’
Contrast Adjustment Fixed
Communications
Format Serial
Data Rate 1200 to 9600 bps (user selectable)
Interface RS232/V24, support for IRDA adapter,
IBM keyboard (through adapter), HP Smartwand
and a Panasonic scanner
Environmental
Storage Temperature -10 to +50°C
Operating Temperature 0 to 40°C (results within calibrated limits)
-10 to 60°C (results may be outside calibrated limits)
Humidity 0 to 90% R-H non condensing
Pollution level II
IP Rating IP51 case closed, IP30 case open
SmartPAT 5500

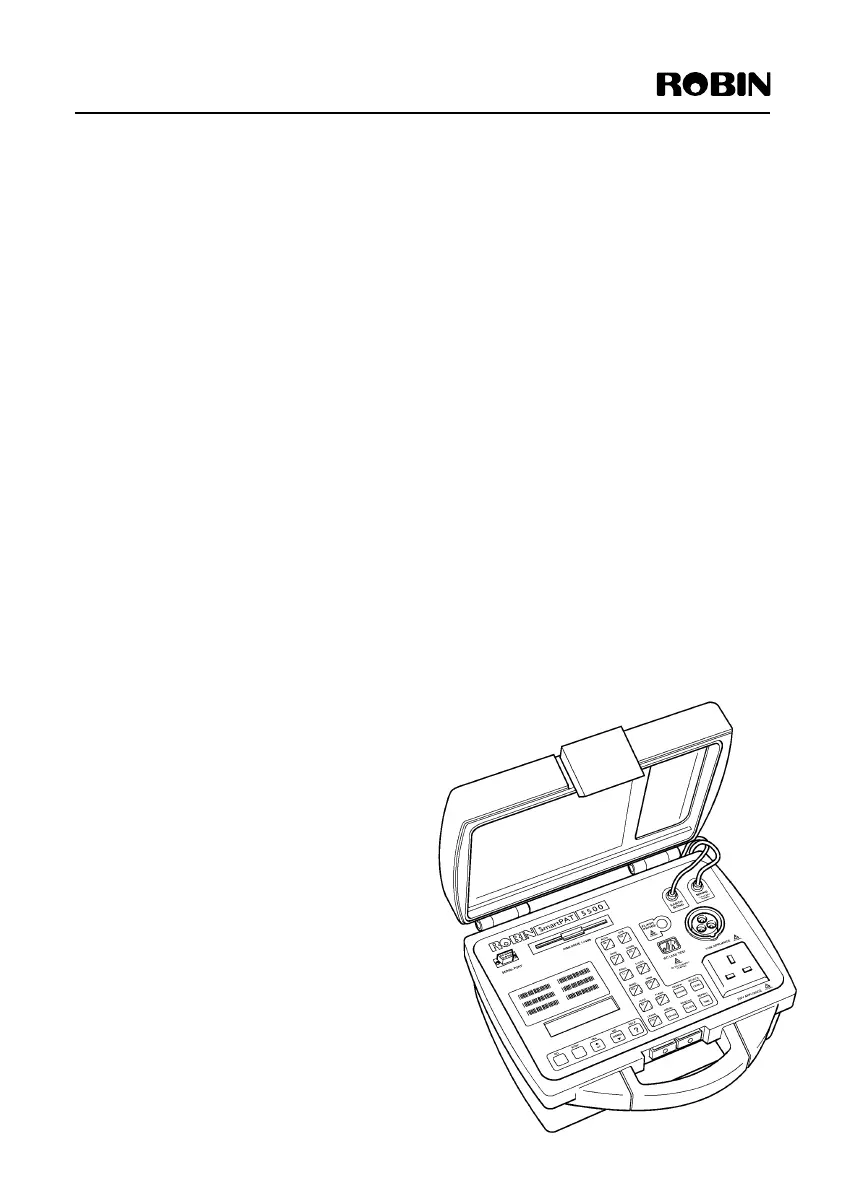

Figure 1 SmartPAT 5500 tester
3
