REVISED: 21 FEB 2014 7-18
ROBINSON
MODEL R44
SECTION 7
SYSTEMS DESCRIPTION
1. VERTICAL SPEED INDICATOR 21. CLOCK
2. OPTIONAL INSTRUMENT 22. ENGINE INSTRUMENTS
3. AIRSPEED INDICATOR 23. PANEL LIGHTS DIMMER
4. ENGINE AND ROTOR TACHS 24. ROTOR BRAKE LIGHT
5. ALTIMETER 25. NAVIGATION LIGHTS SWITCH
6. OPTIONAL INSTRUMENT 26. STROBE LIGHT SWITCH
7. MANIFOLD PRESSURE GAGE 27. CLUTCH ACTUATOR SWITCH
8. CLUTCH ACTUATOR LIGHT 28. ALTERNATOR SWITCH
9. M.R. GEARBOX TEMP LIGHT 29. BATTERY SWITCH
10. M.R. GEARBOX CHIP LIGHT 30. IGNITION SWITCH
11. CARBON MONOXIDE LIGHT 31. CABIN HEAT
12. STARTER-ON LIGHT 32. INTERCOM
13. T.R. GEARBOX CHIP LIGHT 33. OUTSIDE AIR TEMP/VOLTMETER
14. LOW FUEL LIGHT 34. CABIN AIR
15. LOW RPM LIGHT 35. CARBURETOR HEAT
16. ALT LOW VOLTAGE LIGHT 36. CYCLIC FRICTION
17. ENGINE FIRE LIGHT 37. MIXTURE CONTROL
18. OIL PRESSURE LIGHT 38. ELT SWITCH (OPTIONAL)
19. GOVERNOR-OFF LIGHT 39. HEATED PITOT SWITCH (OPT’L)
20. CARBURETOR AIR TEMP

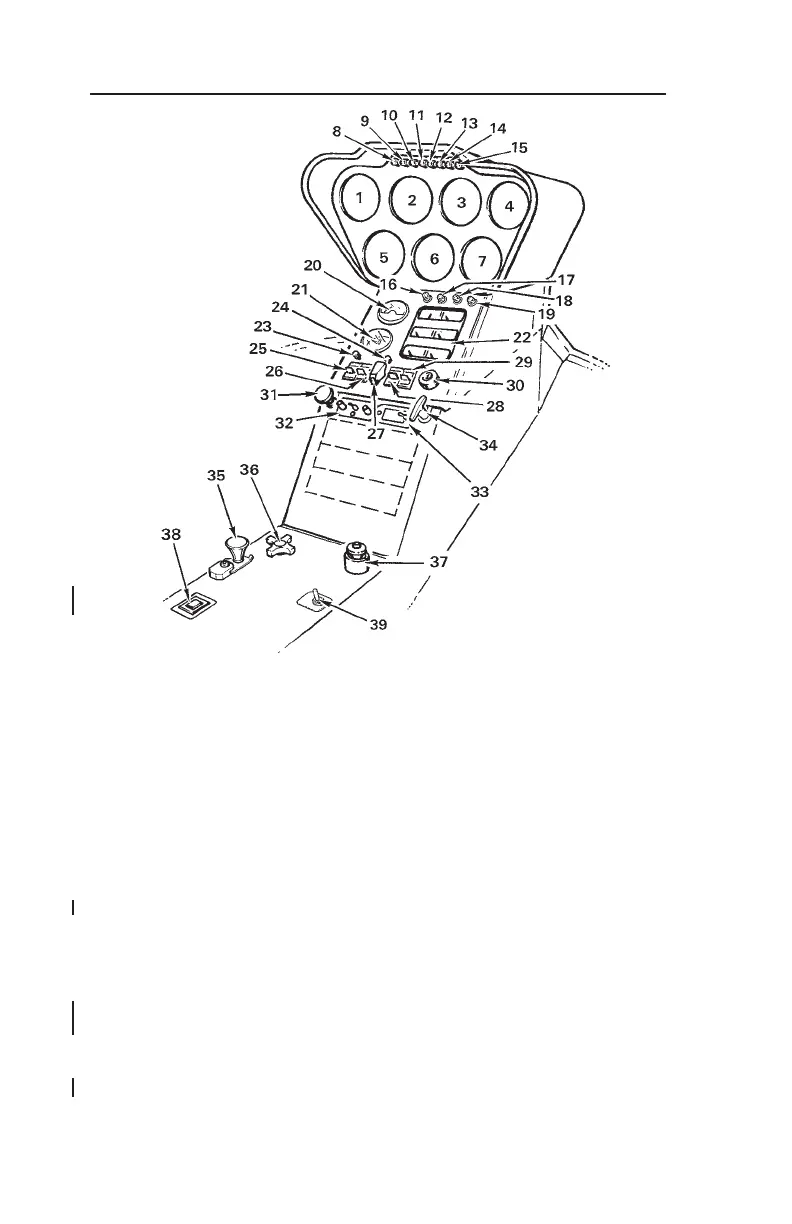

INSTRUMENT PANEL – TYPICAL (EARLIER AIRCRAFT)
(Exact panel configuration may vary with optional equipment and
date of helicopter manufacture.)
