REVISED: 21 FEB 2014 7-19
ROBINSON
MODEL R44
SECTION 7
SYSTEMS DESCRIPTION

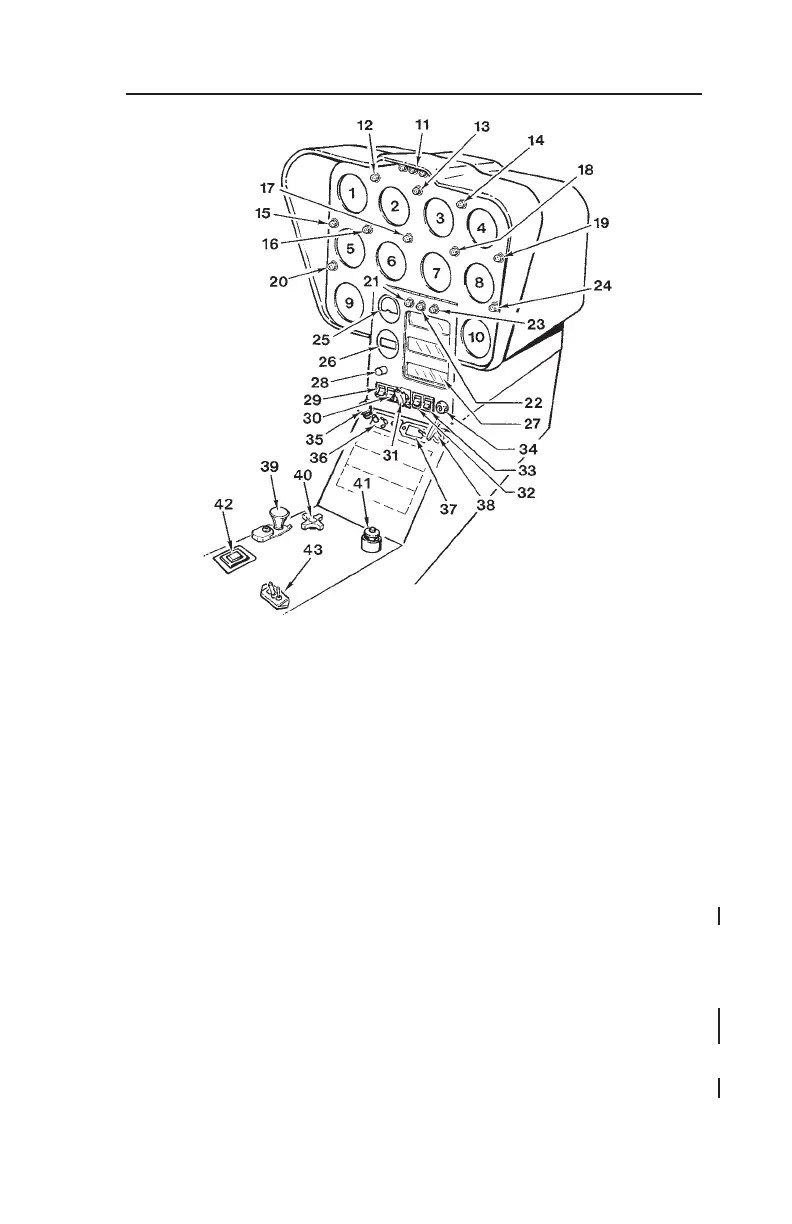

OPTIONAL INSTRUMENT PANEL (EARLIER AIRCRAFT)
(Exact panel configuration may vary with optional equipment and
date of helicopter manufacture.)
1. ENGINE AND ROTOR TACHS 23. OIL PRESSURE LIGHT
2. AIRSPEED INDICATOR 24. ROTOR BRAKE LIGHT
3. ARTIFICIAL HORIZON 25. CARBURETOR AIR TEMP
4. ALTIMETER 26. CLOCK
5. MANIFOLD PRESSURE GAGE 27. ENGINE INSTRUMENTS
6. TURN COORDINATOR 28. PANEL LIGHTS DIMMER
7. HSI 29. NAVIGATION LIGHTS SWITCH
8. VERTICAL SPEED INDICATOR 30. STROBE LIGHT SWITCH
9. OPTIONAL INSTRUMENT 31. CLUTCH ACTUATOR SWITCH
10. OPTIONAL INSTRUMENT 32. ALTERNATOR SWITCH
11. MARKER BEACON 33. BATTERY SWITCH
12. M.R. GEARBOX TEMP LIGHT 34. IGNITION SWITCH
13. T.R. GEARBOX CHIP LIGHT 35. CABIN HEAT
14. M.R. GEARBOX CHIP LIGHT 36. INTERCOM
15. STARTER-ON LIGHT 37. OUTSIDE AIR TEMP/VOLTMETER
16. LOW RPM LIGHT 38. CABIN AIR
17. LOW FUEL LIGHT 39. CARBURETOR HEAT
18. CARBON MONOXIDE LIGHT 40. CYCLIC FRICTION
19. CLUTCH ACTUATOR LIGHT 41. MIXTURE CONTROL
20. GOVERNOR-OFF LIGHT 42. ELT SWITCH (OPTIONAL)
21. ALT LOW VOLTAGE LIGHT 43. HSI SLAVE CONTROL
22. ENGINE FIRE LIGHT
