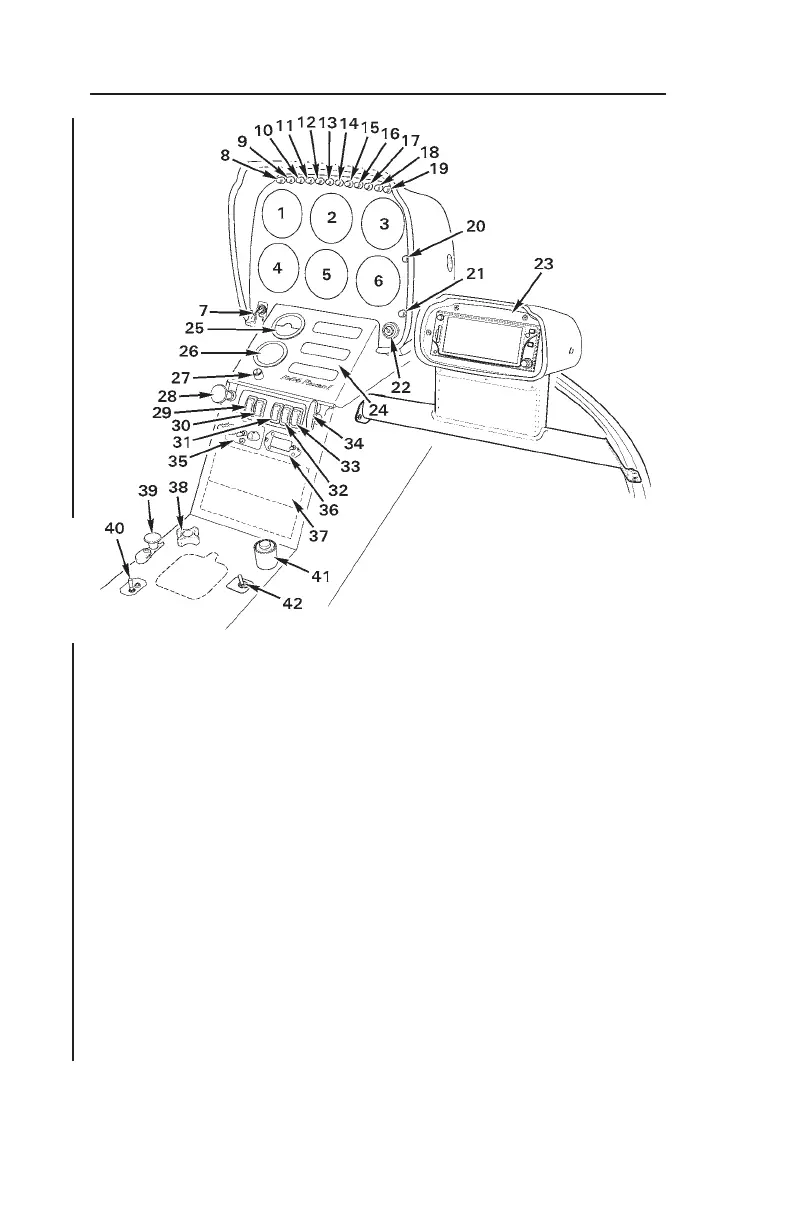

INSTRUMENT PANEL – TYPICAL (LATER AIRCRAFT)
(Exact panel configuration may vary with optional equipment and
date of helicopter manufacture.)
ROBINSON
MODEL R44
SECTION 7
SYSTEMS DESCRIPTION
REVISED: 10 MAR 2015 7-20
1. VERTICAL SPEED INDICATOR 22. IGNITION SWITCH
2. AIRSPEED INDICATOR 23. PILOT’S SIDE CONSOLE (OPT’L)
3. ENGINE AND ROTOR TACHS 24. ENGINE INSTRUMENTS
4. OPTIONAL INSTRUMENT 25. CARBURETOR AIR TEMP
5. ALTIMETER 26. CLOCK
6. MANIFOLD PRESSURE GAGE 27. PANEL LIGHTS DIMMER
7. CLUTCH ACTUATOR SWITCH 28. CABIN HEAT
8. CLUTCH ACTUATOR LIGHT 29. NAVIGATION LIGHTS SWITCH
9. M.R. GEARBOX TEMP LIGHT 30. ANTI-COLLISION LIGHT SWITCH
10. M.R. GEARBOX CHIP LIGHT 31. AVIONICS MASTER SWITCH
11. CARBON MONOXIDE LIGHT 32. ALTERNATOR SWITCH
12. STARTER-ON LIGHT 33. BATTERY SWITCH
13. T.R. GEARBOX CHIP LIGHT 34. CABIN AIR
14. LOW FUEL LIGHT 35. INTERCOM
15. LOW RPM LIGHT 36. OUTSIDE AIR TEMP/VOLTMETER
16. ALT LOW VOLTAGE LIGHT 37. AVIONICS STACK
17. ENGINE FIRE LIGHT 38. CYCLIC FRICTION
18. OIL PRESSURE LIGHT 39. CARBURETOR HEAT
19. GOVERNOR-OFF LIGHT 40. ELT SWITCH (OPTIONAL)
20. FULL THROTTLE LIGHT 41. MIXTURE CONTROL
21. ROTOR BRAKE LIGHT 42. PITOT HEAT SWITCH (OPT’L)
