Robomow RC308 Pro - Page 21

21
EN

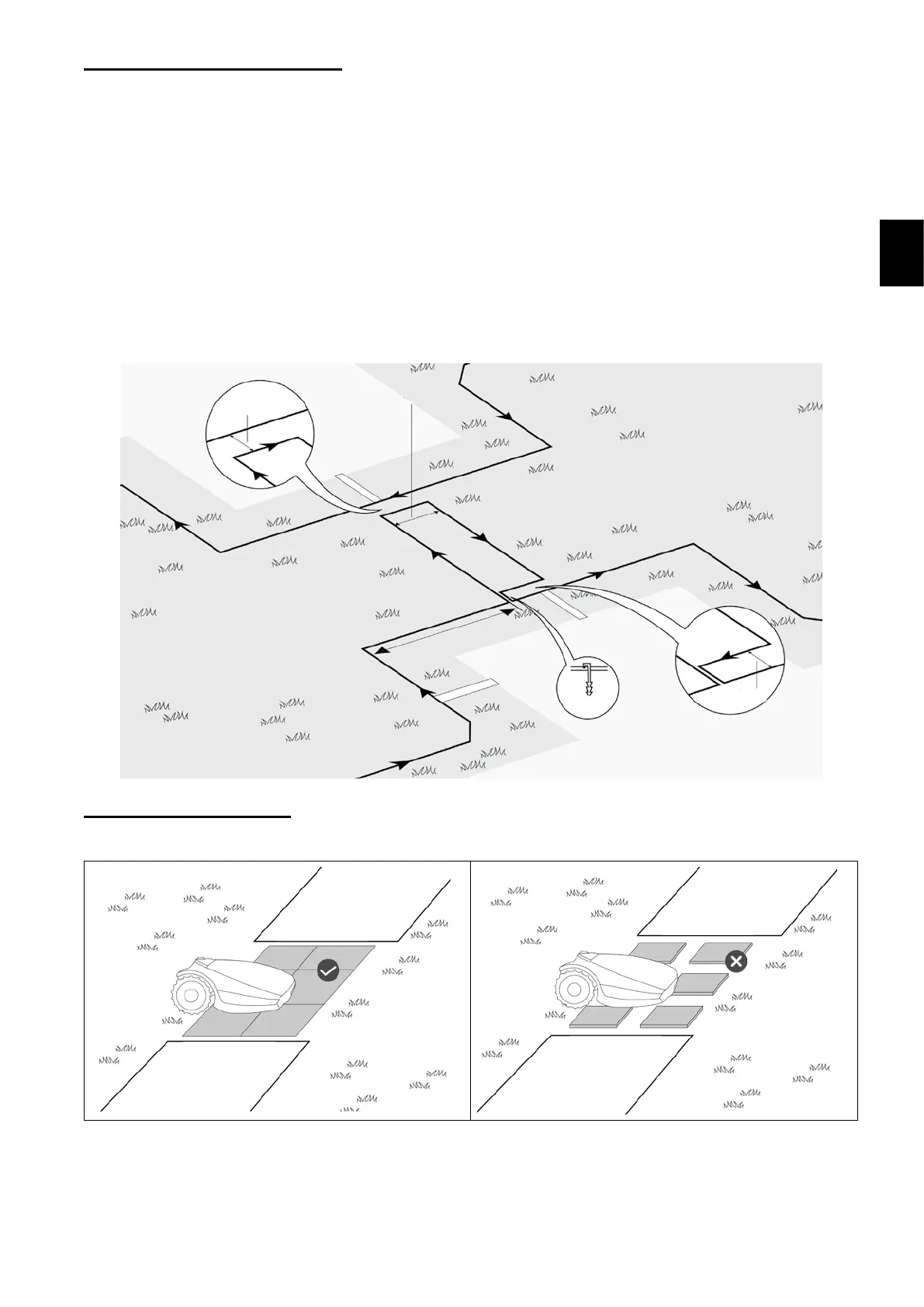

If the passage is WIDER than 1.5m:
If the Narrow Pass is wider than 1.5m (5 ft.), and you want Robomow to mow the area inside the Narrow Pass, then
youcansetthewireasshowninthegurebelow.SuchasetupallowsthemowertomowinsidetheNarrowPass
while mowing the inner part of the lawn, but prevents it from crossing between the zones.
1. DenetheentrytotheNarrowPass–thepointyouwantthemowertostartdrivingtowardstheSub-Zone.
2. Set an Perimeter Island at the middle of the Narrow Pass (refer to 4.3.2) as shown in the picture above and
keep a distance of 10 cm (4 inches) from the Perimeter Wire.
3. The island dimensions should be 28 cm (11”) along the side and as wide as needed, when keeping 10 cm (4
inches) from both sides.
4. After completing the setup of the wire in the Sub-Zone, make sure you keep 10 cm (4 inches) between the wire
and the island on the way back to the Main Zone.
10cm
Sub-Zone
28cm
Min. 50cm
2 Wires under
same peg
10cm
Main-Zone
Good VS Bad Narrow Pass:
Thefollowingdrawingillustratesagood(at)vsbad(bumpy)narrowpassage.
Sub Zone
Main Zone
Main Zone
Sub Zone
