3.5 Setting of the PRO-valve on Standard & Optimum Flow manifolds
Setting of the PRO-valve on Standard and Optimum Flow manifolds
Whenfullyclosed(clockwise)therewillbenomixtureofowand(underoor)returnwater.This
setting can be used for sourcetemperatures to about
40°C. *
When fully open (counterclockwise in factorysetting)
there will be mixture of the ow and (underoor)
returnwater. This setting can be used for
sourcetemperatures from 55 – 80°C.

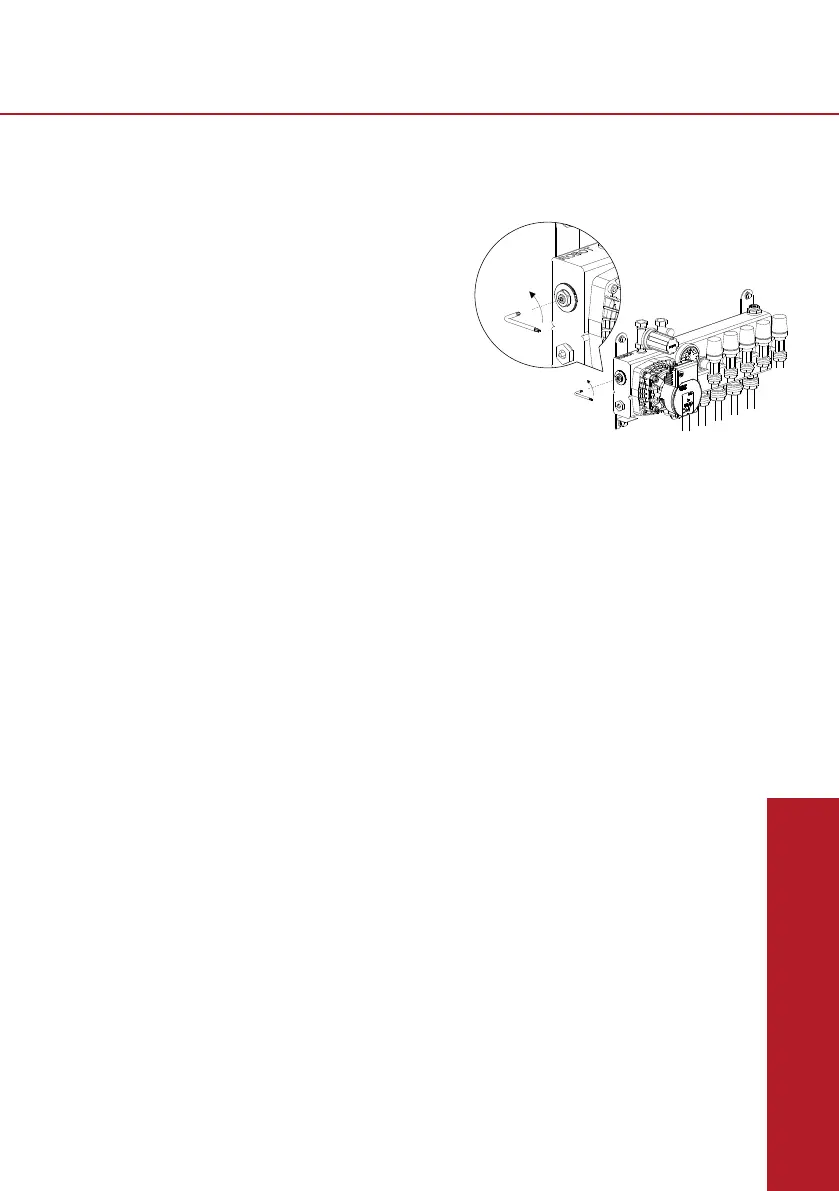

The setting is done by means of an Allan-key. The
more you close the valve in this way, the less mixture
there will be, hence the lower the sourcetemperature
can be.
*We recommend to leave the PRO valve a bit open to be sure of circulation. (One rotation is
enough)
