6. Installing/mounting
Installing/mounting
6.1 Mounting of manifold

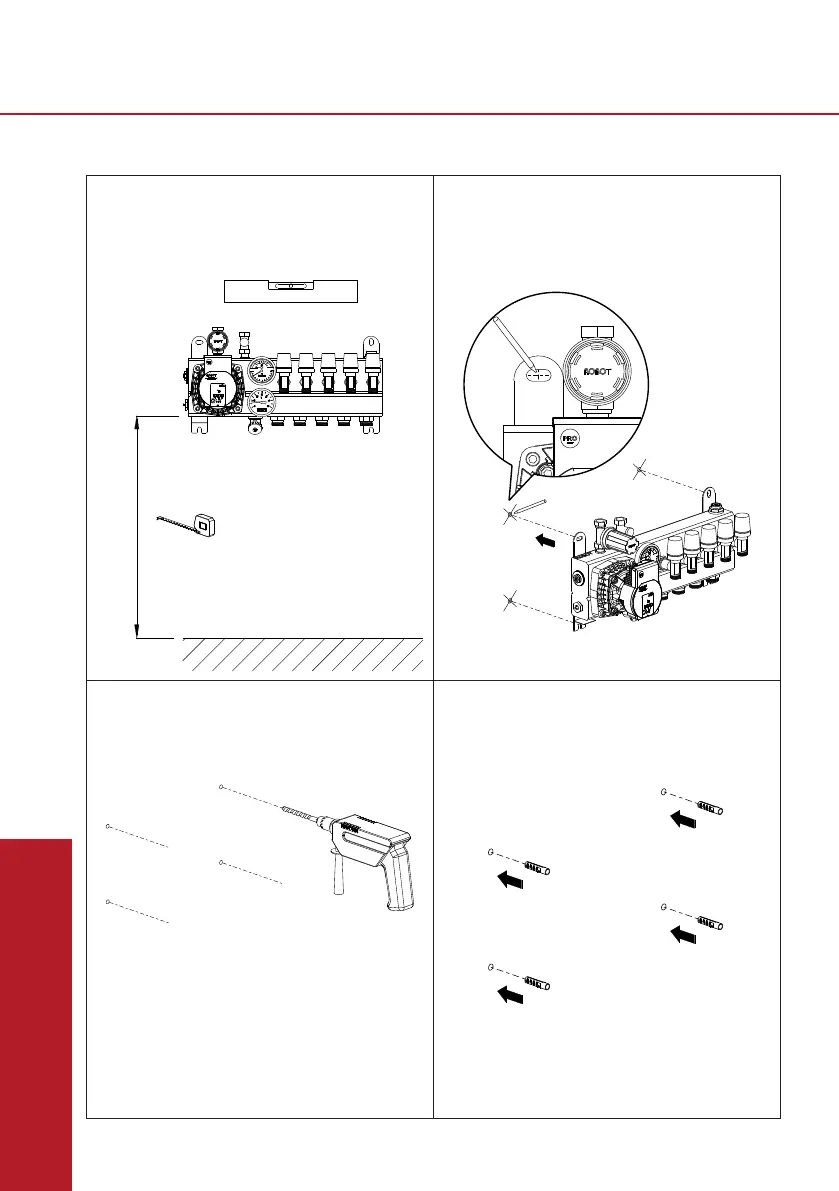

1. Position the manifold level against the wall
ataheightofapprox.50cmfromtheoor.
2. Mark the positions of the mounting holes of
themanifoldwithapencil/markerontheoor.
3. Drill the mounting holes in the wall.
4. Place the plugs in the mounting holes.
18 Manifolds Manual
ca. 50 cm
Ø10 mm
