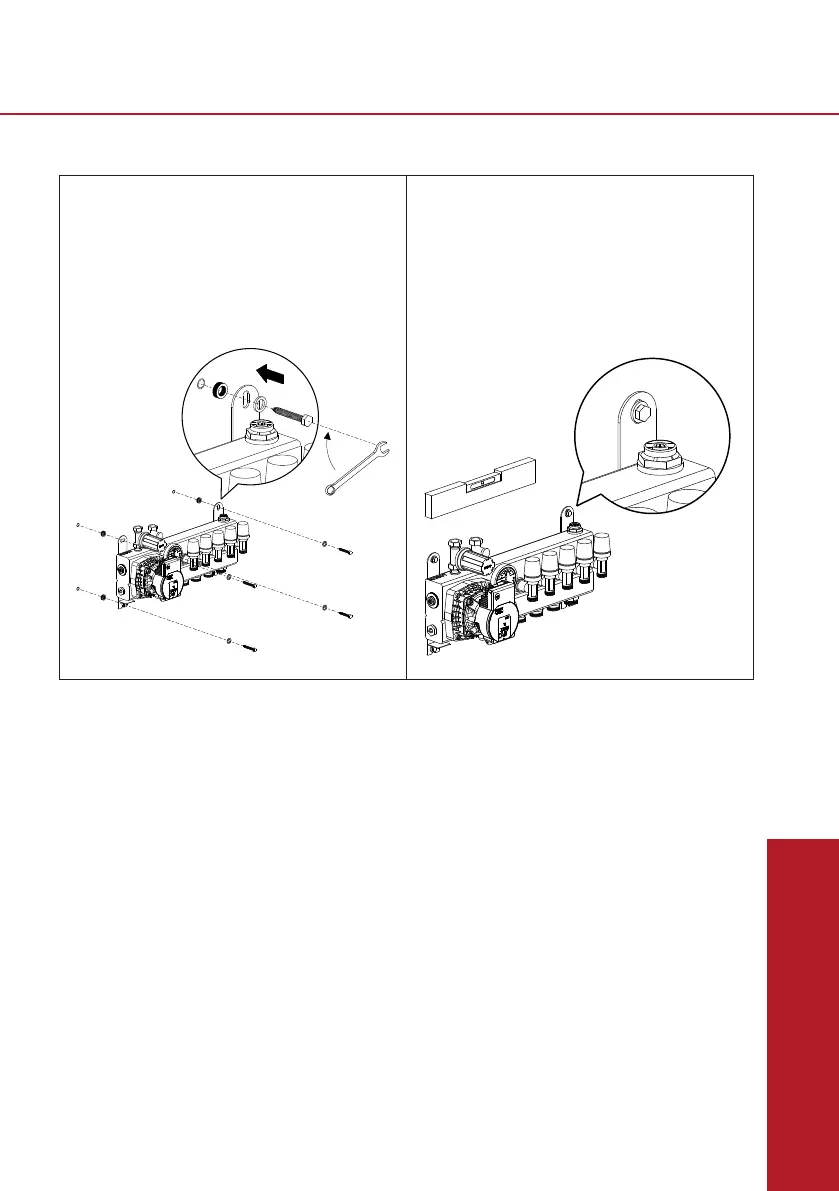

5. Place a rubber silencer behind the
suspension points of the manifold. Insert the
mountingbolts(includingwasher)throughthe
suspensionpoints(andsilencers)inthewall.
6. Fix the manifold with the bolts to the wall.
Self-level the manifold. Tighten the bolts until
the rubbers are completely embedded with-
out deforming them. Check if the rubber si-
lencers can still be pressed lightly.
Installing/mounting
Manifolds Manual 19
