Manifolds Manual 21

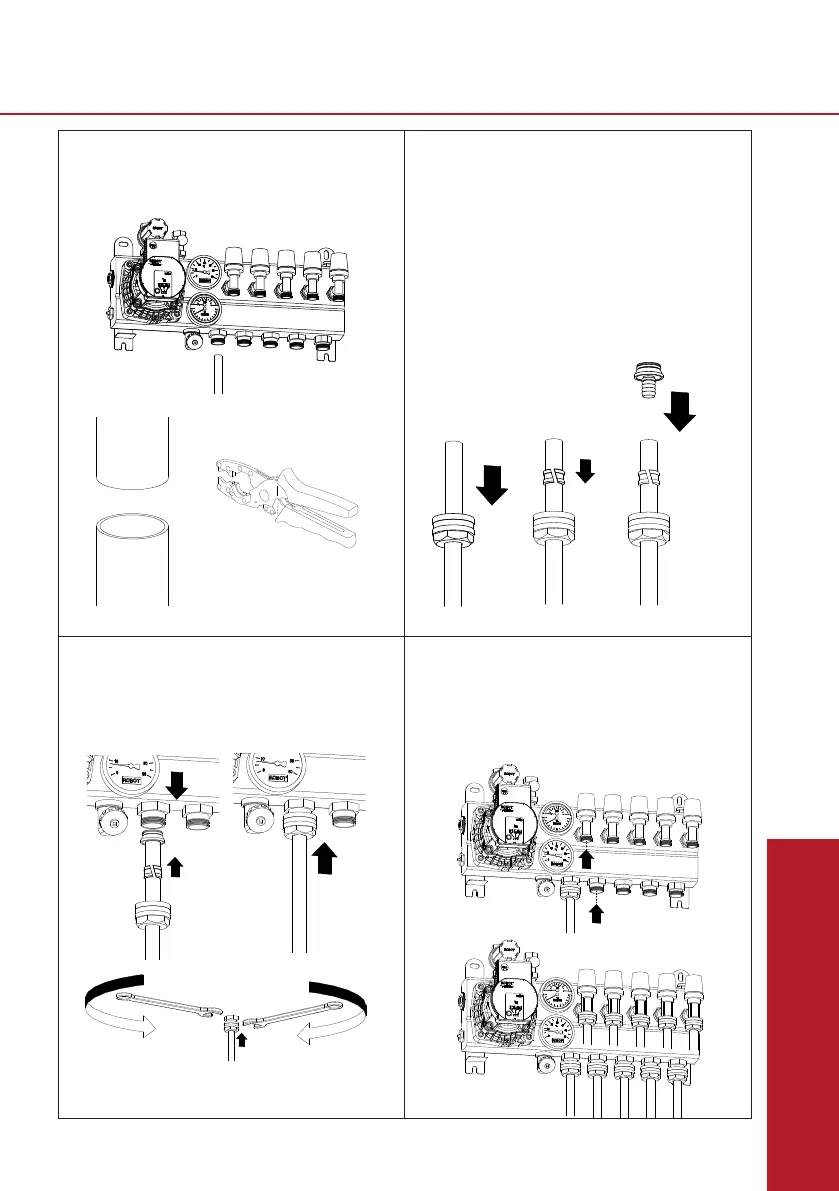

1. The underoor heating pipe must be cut
straight and the pipes must be de-burred.
2. Slide the union nut approx. 10 cm over the
underoorheatingpipe.
3. Place the clamping ring on the pipe and
slide it a few centimetres.
4. Insert the adapter or socket into the pipe
and push to the end.
5. Move back the clamping ring to the
adapter.
6.
Thenscrewthepipeontothesupplytting
and put the relevant group together in the
oororinthewall.
7. Connect the end of the group to the men-
tionedgroupvalvewiththehelpofapipet-
ting(aspreviouslydescribed).
8. Repeat the above procedure if there are
several groups.
90°
Installing/mounting
Always use two at open spanners. Turn the
spanners counter-clockwise.
