18

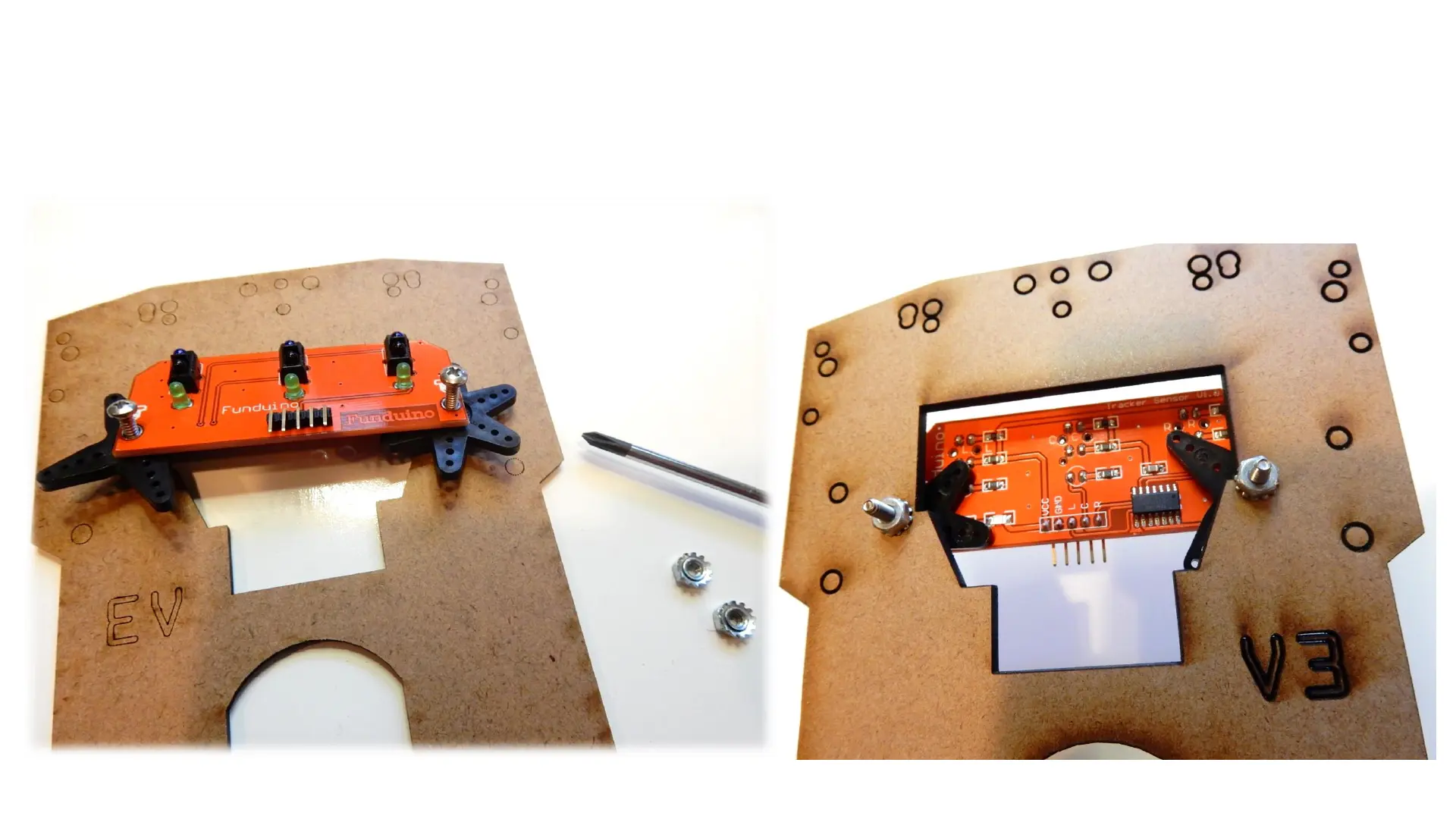

Follow the photos below to install the sensor using
the 3/4 screws. Use the servo motor horns as spacers.
