Robotics V3 - Front Acorn Nut Installation

Installing front acorn nut
19

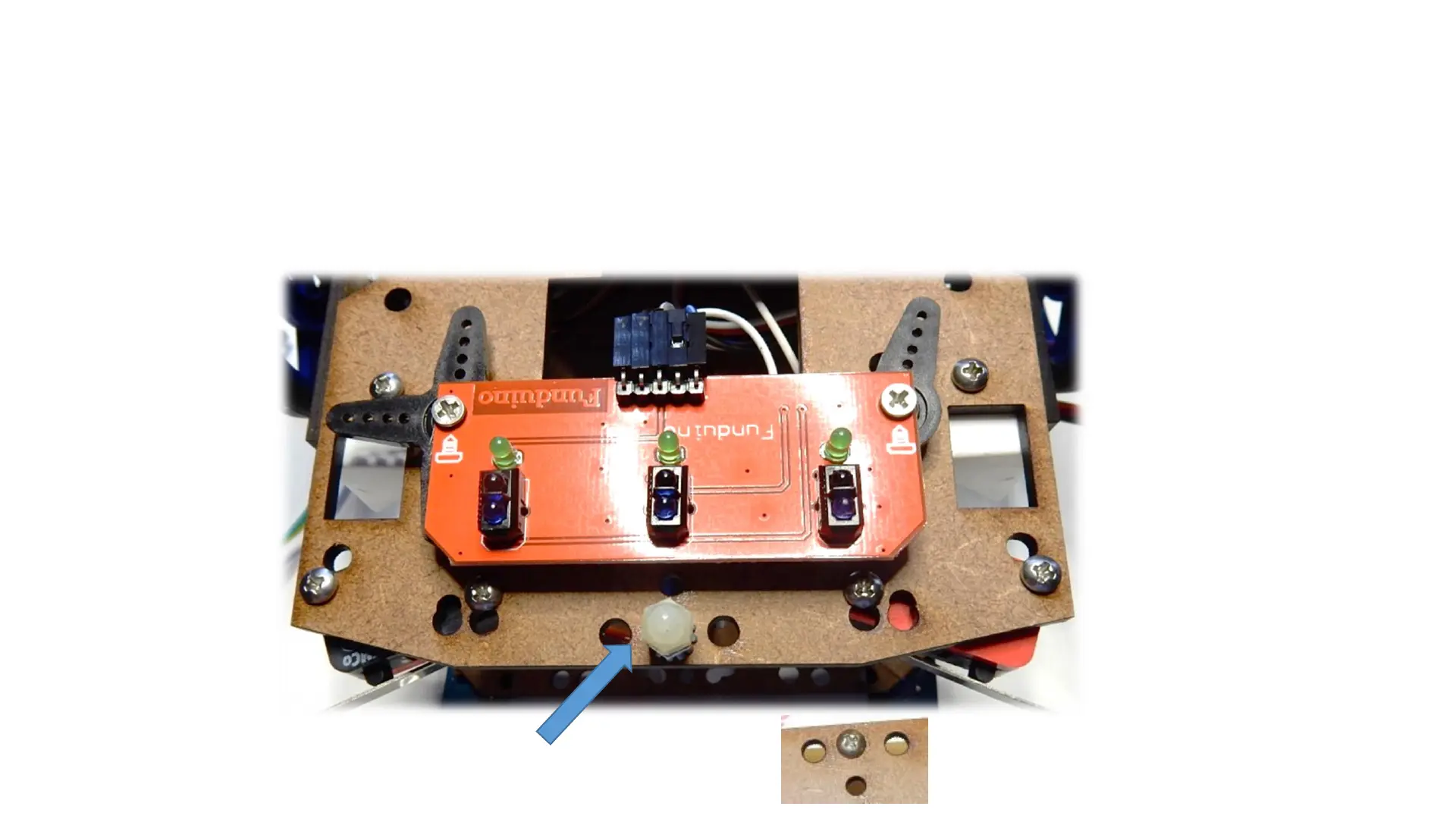

Using a 1/2” pan head screw and lock
nut proceed to install as shown below.
Note:
- Try to tighten the acorn nut as much
as possible
Parts:
- (1) 1/2” pan head
screw
- (1) lock nut
- (1) acorn nut
Acorn nut with ½” Screw
