Robotics V3 - Step 13: Battery Switch and Power Connections

34

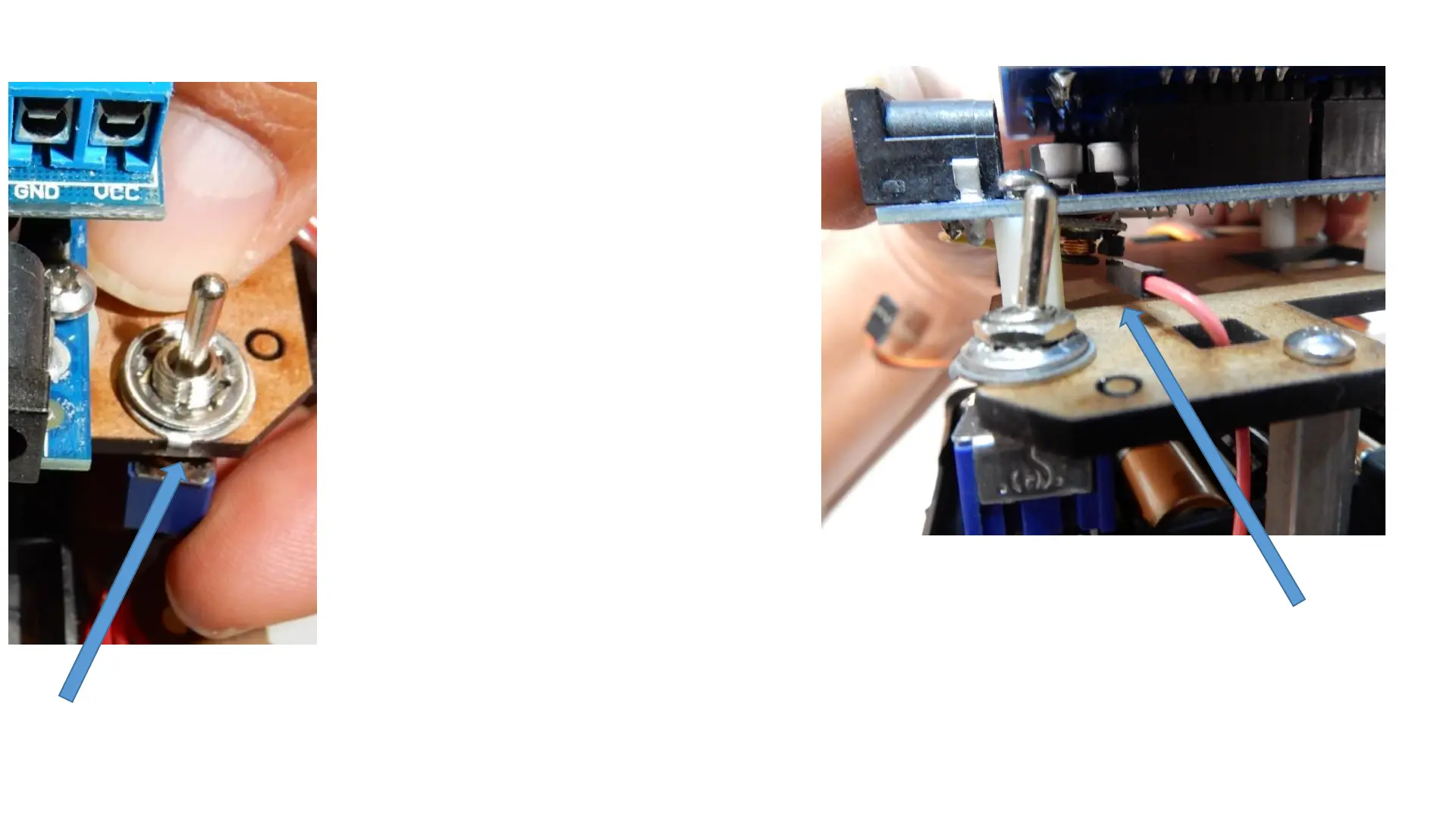

Run the red
female DuPont
wire from the
battery holder to
the bottom of the
Arduino DC-DC
converter pin
thru the small
square on the top
chassis as shown
on left and right
pictures.
Step 11: Installing the Battery ON-OFF switch and Power Connections
Make sure metal tab from
switch faces out of the
laser cut chassis
Bottom of Arduino board
has a pin from the DC-DC
converter and red
extension DuPont cable.
Connect it if is not
already connected
