2

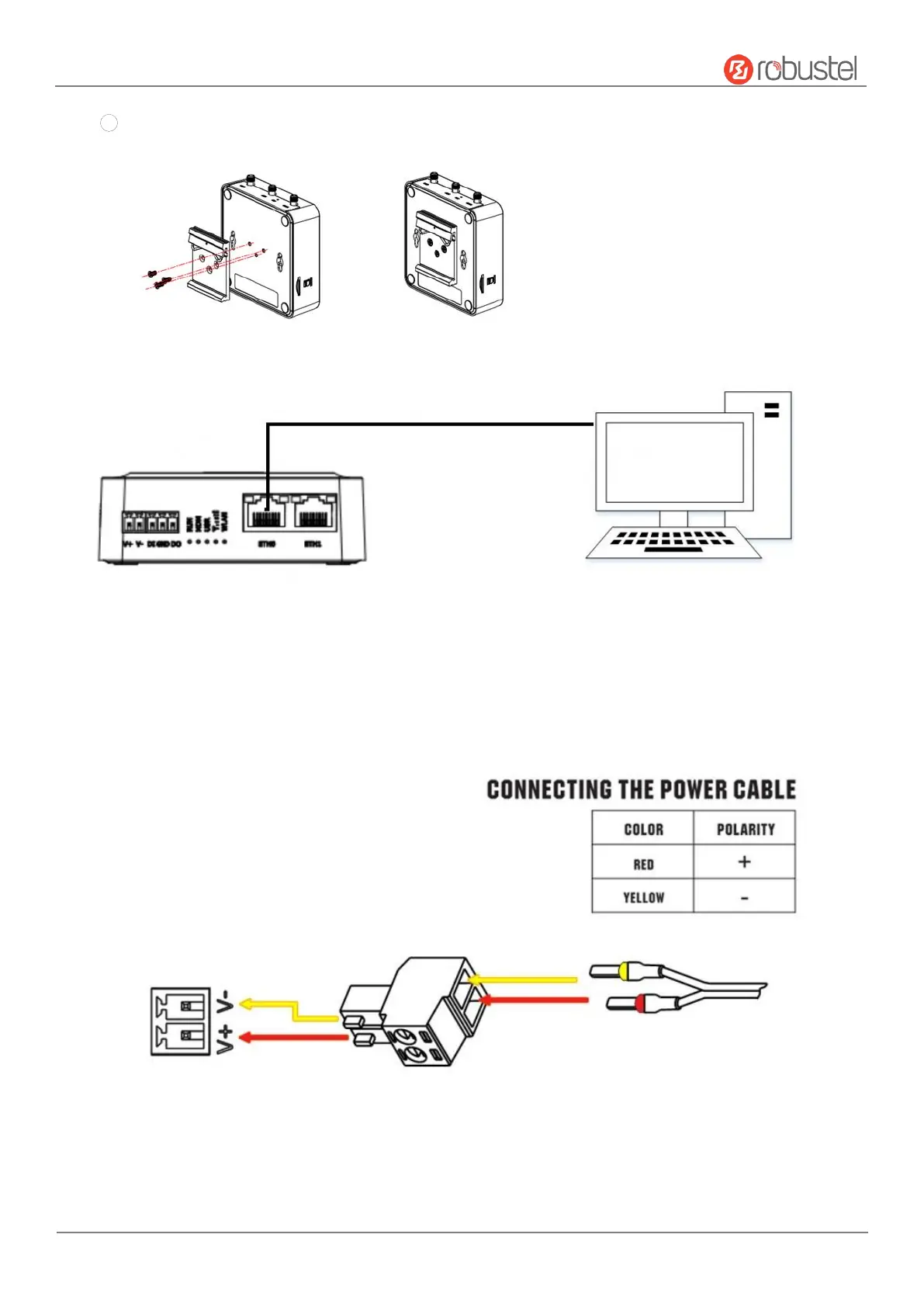

DIN rail mounting
5. Connect the Router to a Computer
6. Power Supply installation. There are two cables associated with the power adapter. Following to the color of
the head, connect the cable marked red to the positive pole through a terminal block, and connect the yellow
one to the negative in the same way.
Note: The range of power voltage is 9 to 36V DC.
