Robustel R3000-3P User Manual

Robustel GoRugged R3000 User Guide
RT_UG_R3000_v.4.0.0 27 March, 2017 73/136
Confidential

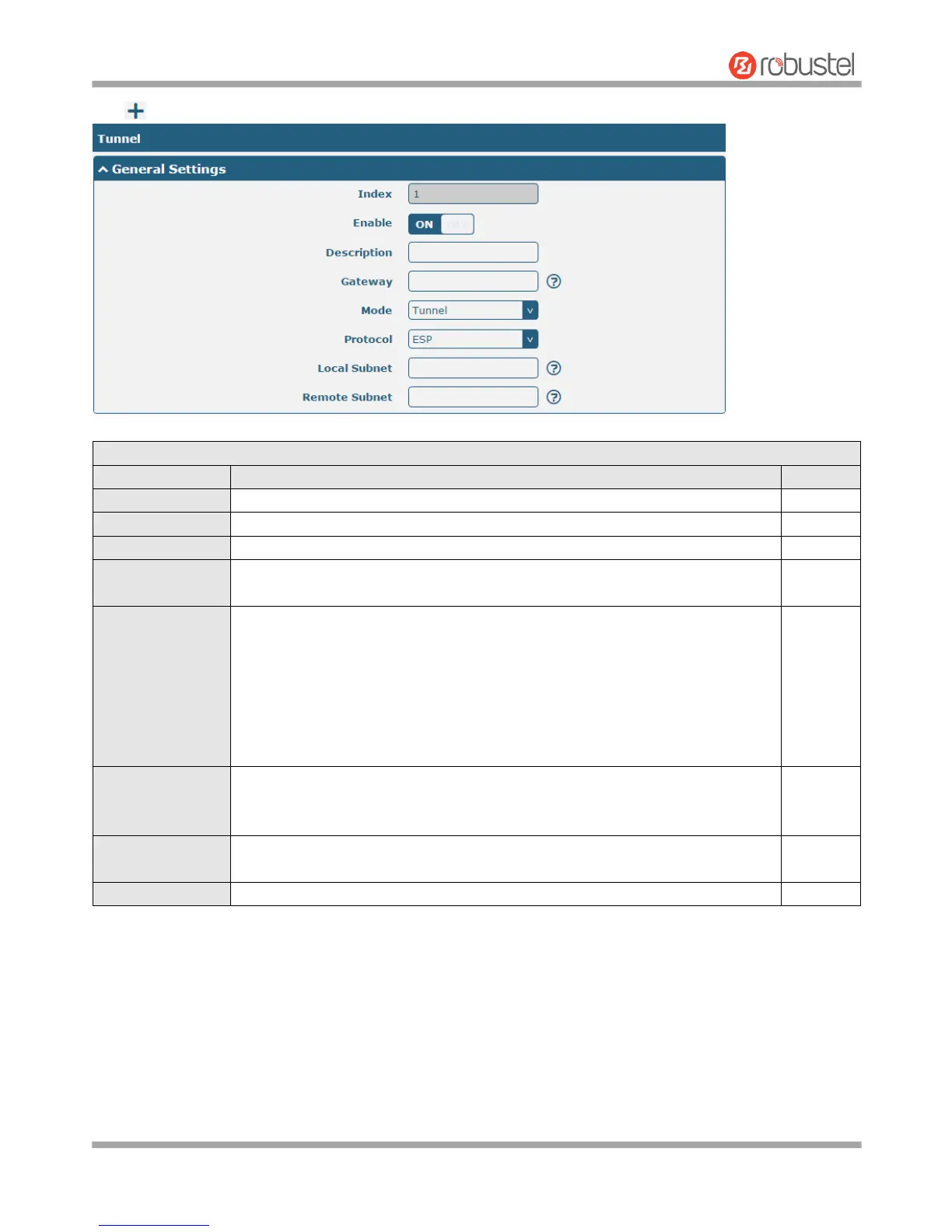

Click to add tunnel settings. The maximum count is 3.
Tunnel Settings
Item
Description
Default
Index
Indicate the ordinal of the list.
--
Enable
Click the toggle button to enable/disable this IPsec tunnel.
ON
Description
Enter a description for this IPsec tunnel.
Null
Gateway
Enter the address of remote side IPsec VPN server. 0.0.0.0 represents for any
address.
Null
Mode
Select from “Tunnel” and “Transport”.
 Tunnel: Commonly used between gateways, or at an end-station to a
gateway, the gateway acting as a proxy for the hosts behind it
 Transport: Used between end-stations or between an end-station and a
gateway, if the gateway is being treated as a host-for example, an encrypted
Telnet session from a workstation to a router, in which the router is the
actual destination
Tunnel
Protocol
Select the security protocols from “ESP” and “AH”.
 ESP: Use the ESP protocol
 AH: Use the AH protocol
ESP
Local Subnet
Enter the local subnet’s address with mask protected by IPsec, e.g.
192.168.1.0/24
Null
Remote Subnet
Enter the remote subnet’s address with mask protected by IPsec, e.g. 10.8.0.0/24
Null
