5
Load control functions:
∗ Load over current protection, LCD display shows “Overload”.
∗ Load short circuit protection, LCD display shows “Short circuit”
∗ Automatic load disconnect at low battery (user settable)
∗ Automatic load reconnect upon battery voltage recovery (user settable)

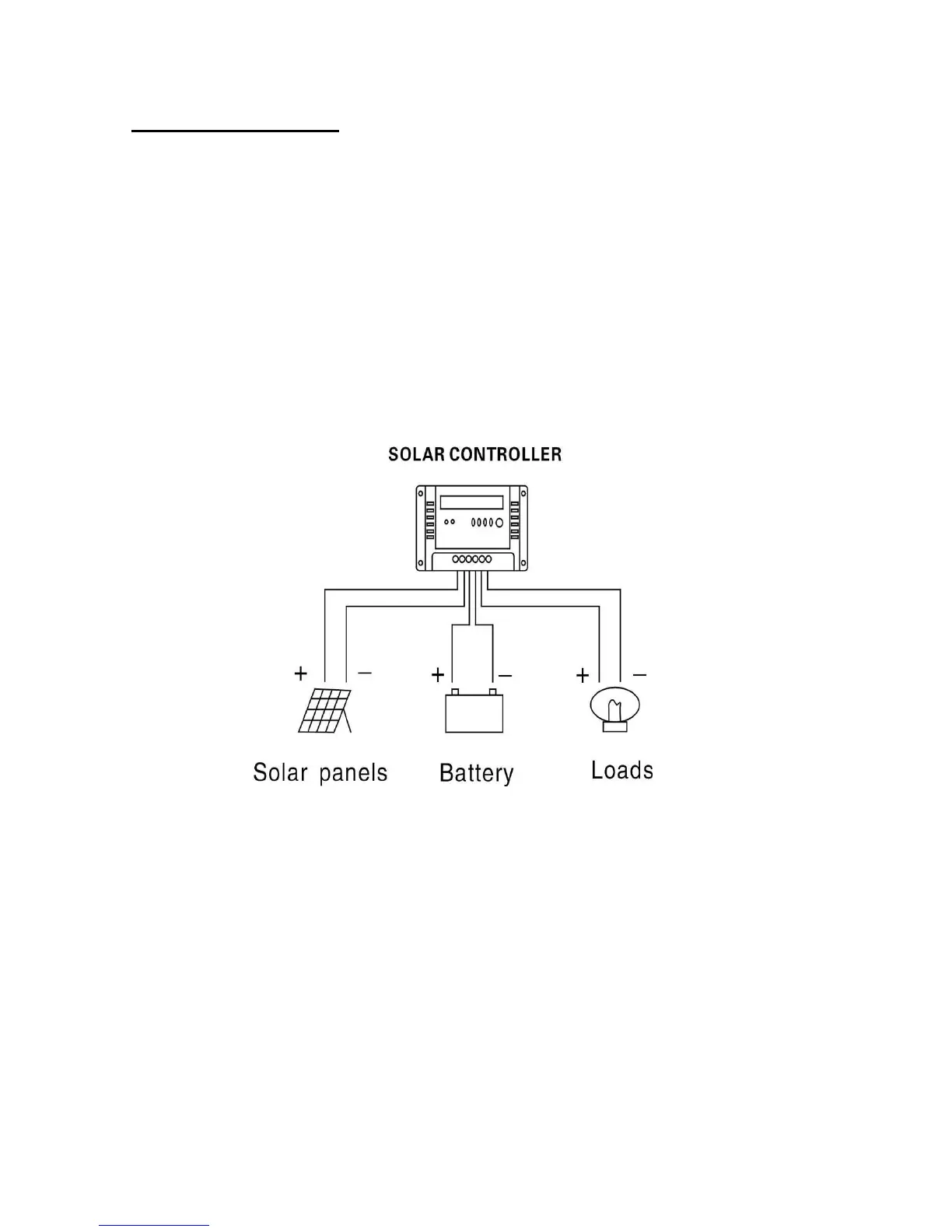

Connection
Your ROC-SOLID solar controller has 6 terminals for connection to your battery,
solar cells and load. These terminals are clearly marked for your ease of
connection. Your battery, solar cells and loads all have separate earths (negative
connections), never join them together.
Caution during system testing!
◊ Do not illuminate solar panels with standard lights for testing.
◊ Do not use a DC power supply in lieu of solar panels.
◊ Ensure the battery is always connected first.
Understanding the LED Status indicators
Green LED on Loads are normally working
Red LED on Battery is fast charging
Red LED is flickering Battery is charged and in float condition.
