Operation of you CS series Solar Controller
Immediately following the initial power-up, the screen will display the model number
of the controller for a few seconds, then default to the main screen below. Upon
Initial start up the battery charge-off voltage, loads cut off voltage, Load-on Voltage
of loads reset will be the factory defaults unless you have previously changed
them.

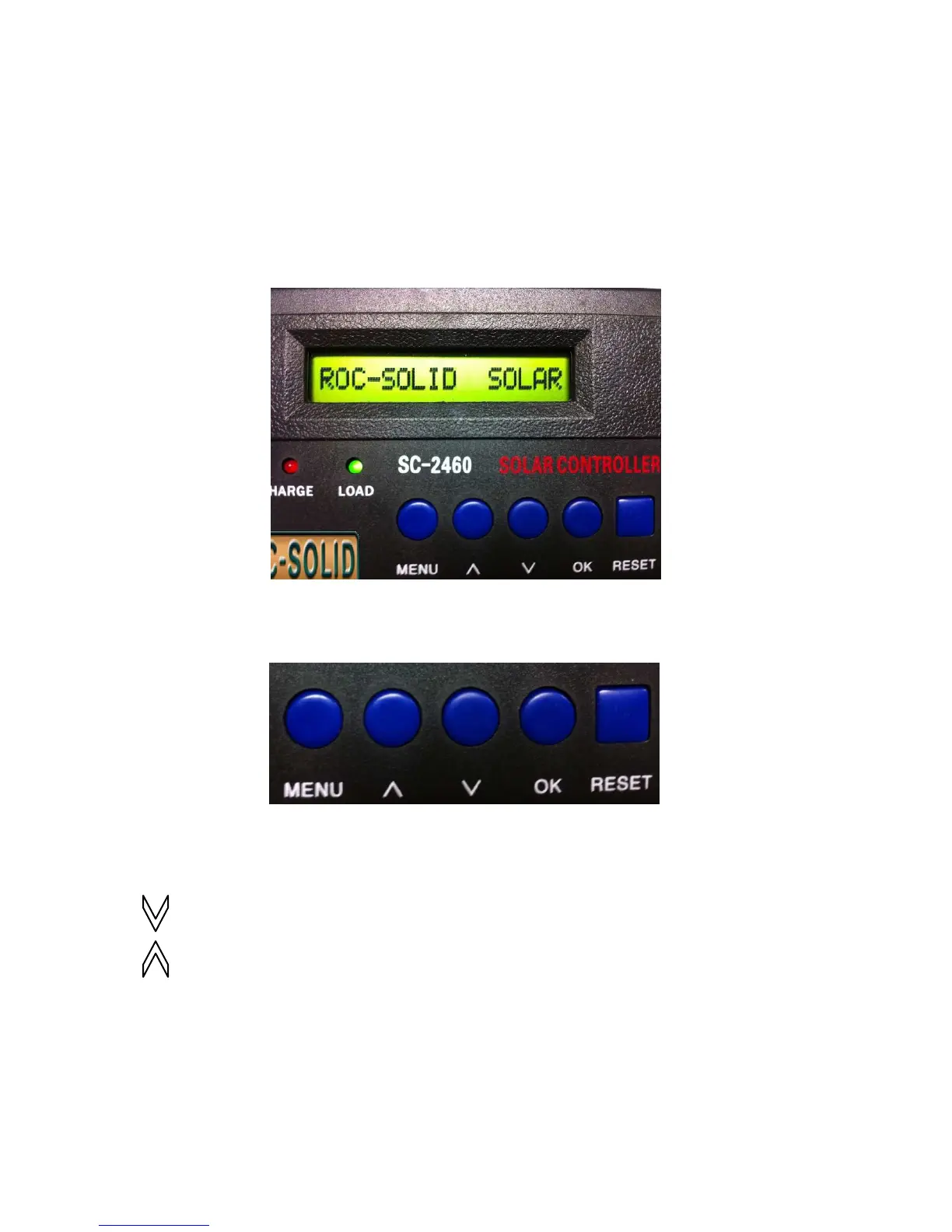

The solar controller has 5 buttons used to select the display mode and modify the
default settings to the user requirements.
These buttons are used as follows:
MENU: Will progress the display to the next item on the menu
Is used to increase the value (if it is variable)
Is used to decrease the value (if it is variable)
OK: Displays the instantaneous battery voltage, charge and load current
RESET: Recovers the unit from over current load or short circuit conditions
*Note: Pressing and holding down the MENU key for more than 5 seconds will
restore the factory default settings
