cobas c 111 Installation Manual
04906900001
INSTALLATION-MANUAL cobas c 111
Version 3.0 Page 30 of 43
9. Connect the flat ribbon cable to the PCB ISE Controller J2.
10. Remove the power box guard plate.

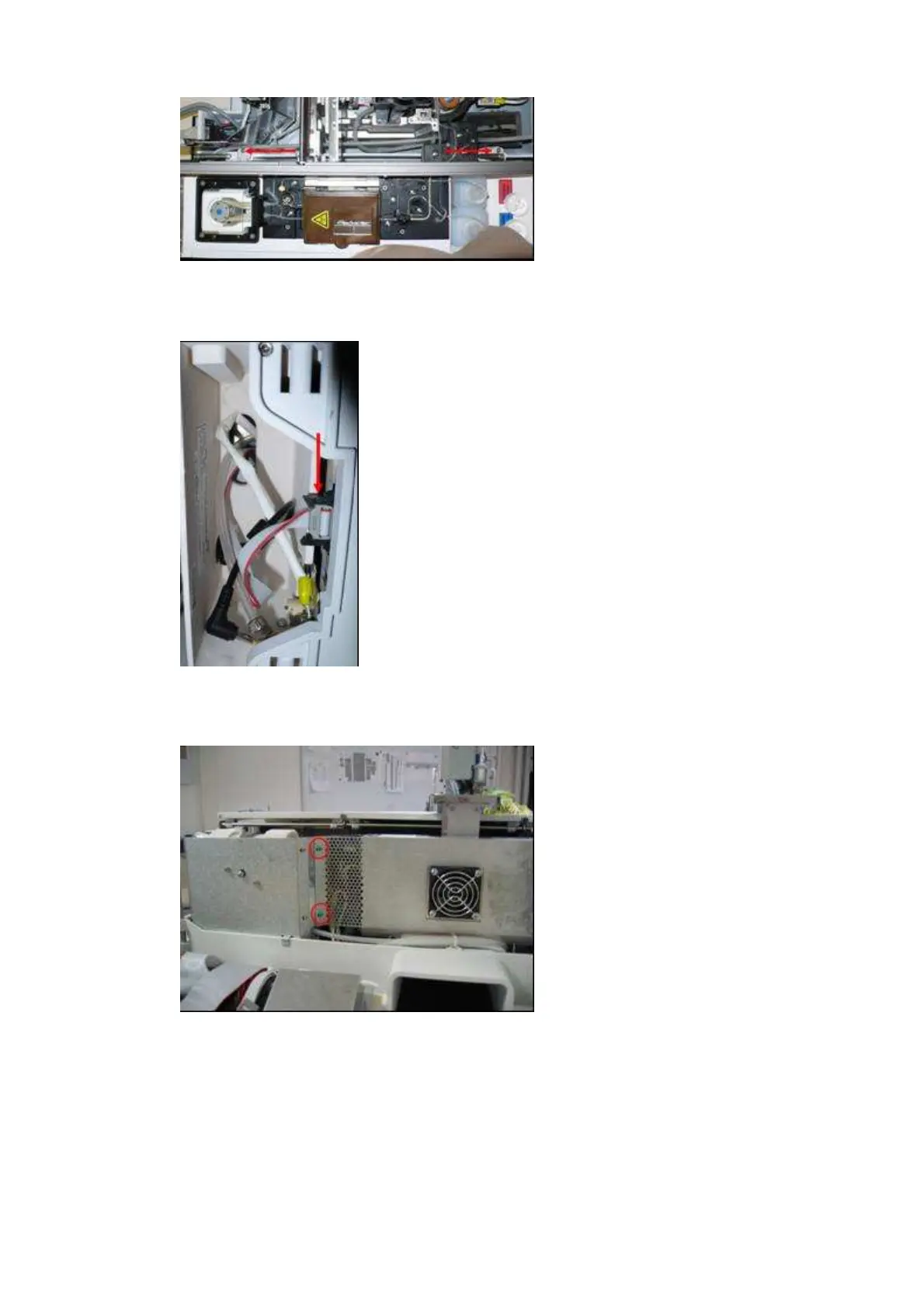

ISE Module fixation screws
Flat ribbon cable connection
Power box guard plate fixation
