SRAM CORPORATION • MARCH 2004 9
SRAM C
ORPORATION
• P
ILOT
U
SER
M
ANUAL
E
NGLISH

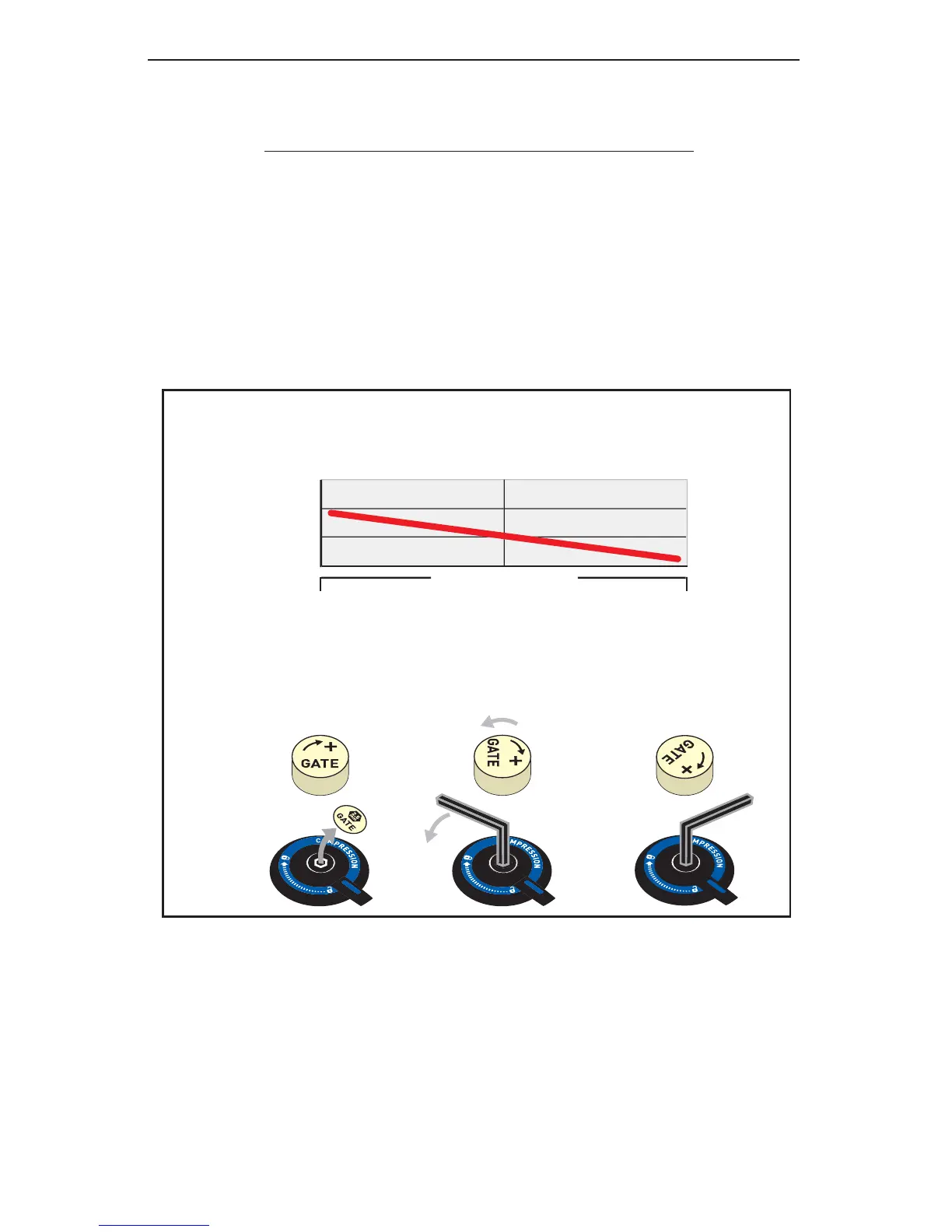

All settings from Maximum Floodgate (or full clockwise)
INTERNAL FLOODGATE
Rider weight lb (kg) Full Turns Counterclockwise
< 120 (< 54 kg) 2.0 +
120 - 150 (54 - 68 kg) 1.5 - 2.0
150 - 180 (68 - 82 kg) 1.0 - 1.5
180 - 210 (82 - 95 kg) 0.5 - 1.0
210 < (95 kg < ) 0.0 - 0.5
TIP: THE REBOUND ADJUSTER ON THE BOTTOM RIGHT FORK LEG CAN BE USED TO ADJUST INTERNAL
FLOODGATE MODELS. GENTLY PULL DOWNWARD ON THE REBOUND ADJUSTER FOR REMOVAL. REMOVE THE
GOLD
‘GATE’ DUST CAP AND INSERT THE 2.5MM HEX END OF THE REBOUND ADJUSTER INTO THE FLOODGATE.
D
ON'T FORGET TO RE-INSTALL THE ADJUSTER AFTER USE!
C OMPRESSION A DJUSTMENT (F IG. 4)
Some fork models also feature adjust able compression damping. Increased compression
decreases fork movement in the ‘Open’ position. Compression adjustment can be used
to help combat brake dive and "squatting" under hard cornering.
For crown activated forks, compression damping increases to ‘Lock’ as the crown-
mounted actuator rot ates 90 degrees clockwise. Position the actuator anywhere within
the range from ‘Open’ to ‘Lock’ to suit the desired level of compression damping.
NOTE: THE COMPRESSION SETTING DOES NOT ADVERSELY EFFECT YOUR FORK'S PERFORMANCE OVER HIGH
SPEED IMPACTS
.
