Need help? Call 1-800-620-2790 (U.S. and Canada)

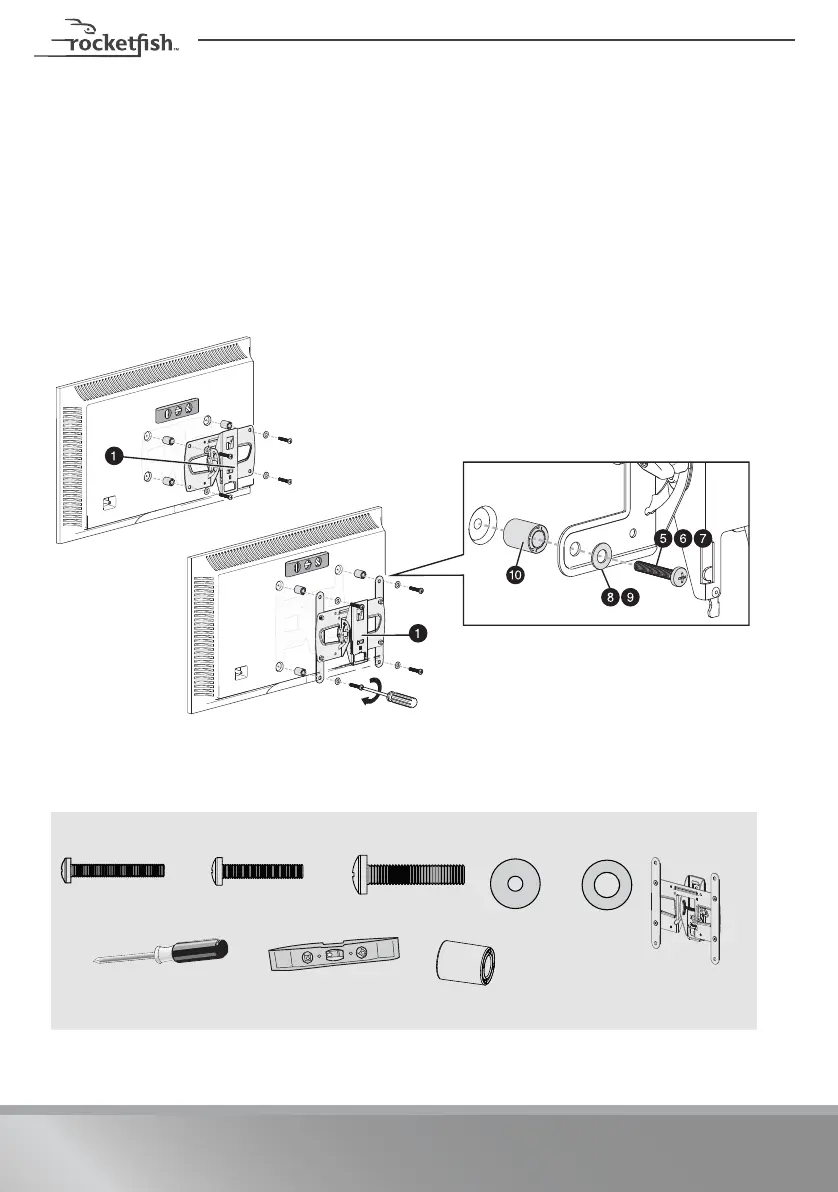

STEP 4 - Option 2: Attaching the mounting hardware to
TVs with irregular or obstructed backs
1 Place the spacers (10) over the screw holes on the back of the TV.
2Align the TV bracket (1) over the spacers (10), then place the washers (8 or 9)
over the holes in the TV bracket and insert the screws (5, 6, or 7) through the
washers, TV bracket, and spacers. Make sure the bracket is level.
3 Tighten the screws until they are snug against the TV bracket. Do not over
tighten.
You’ll need
TV bracket configuration B
TV bracket configuration A
8 (4)
9 (4)
5 (4)
6 (4)
7 (4)
Phillips screwdriver
or
or
or
10 (4)
Level
(1) TV Bracket (configuration
depends on TV)
