9
Need help? Call 1-800-620-2790 (U.S. and Canada)
RF-HTVMTAB

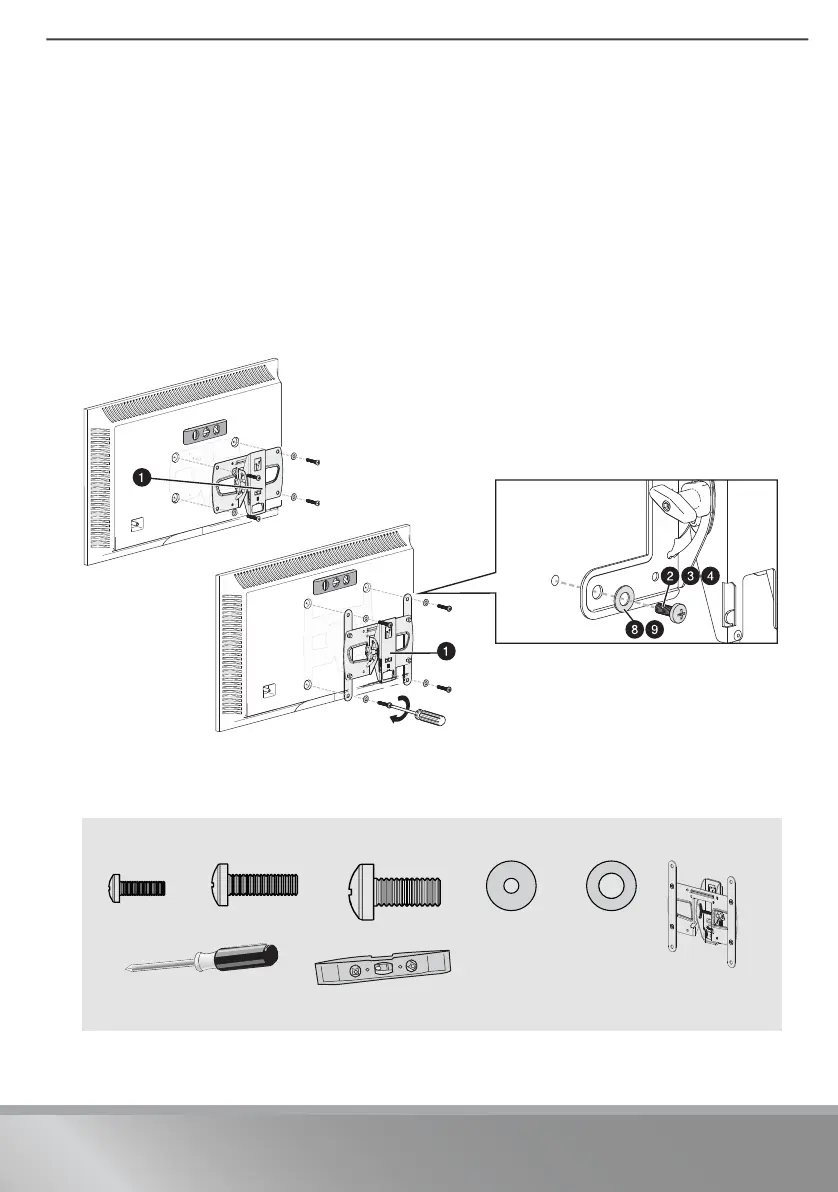

STEP 4 - Option 1: Attaching the mounting hardware to
TVs with a flat back
1 Align the holes you noted on the TV bracket (1) with the screw holes on the back
of your TV. Make sure the bracket is level.
2 Place the washers (8 or 9) over the holes in the TV brackets that align with the
screw holes on the back of your TV, then insert the screws (2, 3, or 4) through the
washers.
3 Tighten the screws until they are snug against the TV bracket. Do not over
tighten.
You’ll need
TV bracket configuration B
TV bracket configuration A
8 (4) 9 (4)
2 (4)
3 (4)
Phillips screwdriver
oror
or
Level
(1) TV Bracket (configuration
depends on TV)
4 (4)
RF-HTVMTAB_16-0417_MAN_V2_ENG.fm Page 9 Friday, June 3, 2016 2:41 PM
