9
RF-WSW312

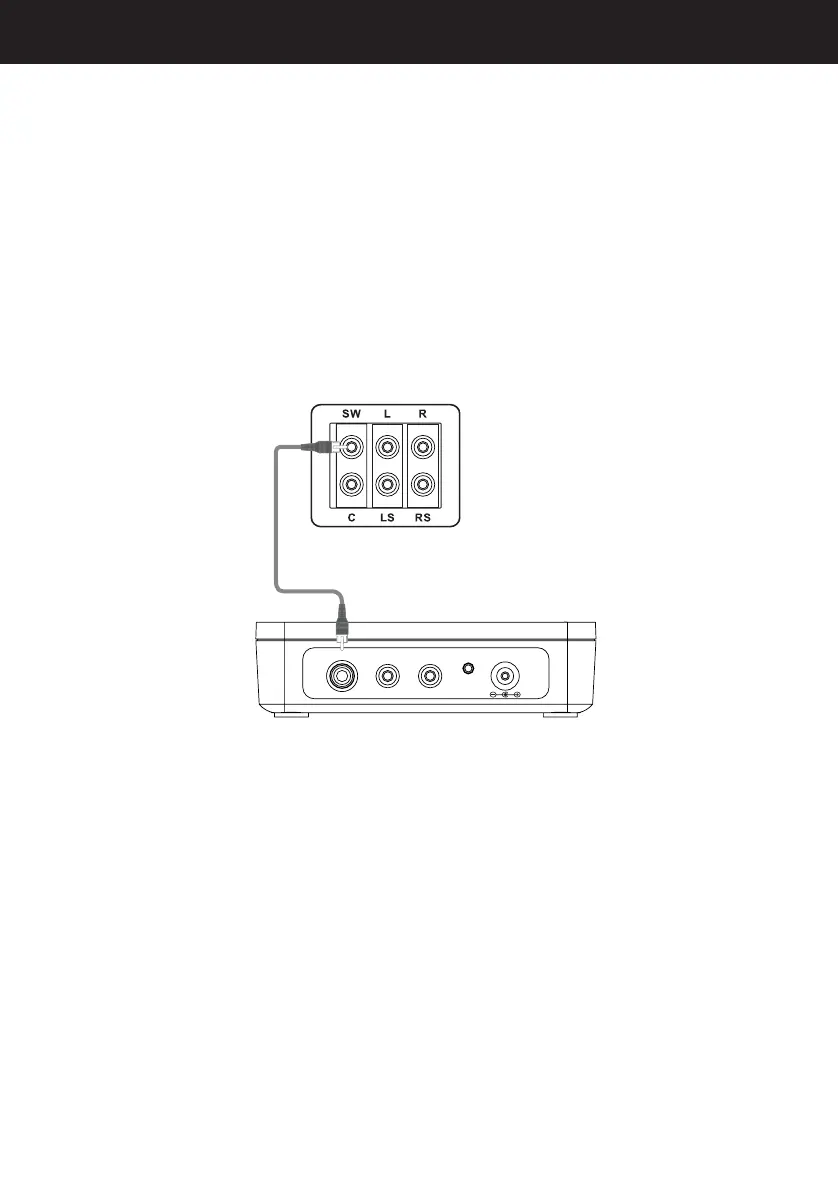

Connecting the Wireless Sender
Option 1: Home theater receiver with a Sub Out jack
Most home theater receivers have a subwoofer output jack. For
that type of receiver, use this option.
• Connect the Subwoofer RCA cable (provided) to the
Subwoofer Out RCA jack on your home theater receiver and
to the Wireless Sender’s SUB IN RCA jack.
-OR-
CONNECT DC IN 5V
SUB L R
Wireless Sender back panel
12-1005_RF-WSW312_MAN_V1_EN.fm Page 9 Friday, October 12, 2012 12:13 PM
