2. Operation RO
i
400
ROCKINGER
Member of JOST-World
3
ROCKINGER
Member of JOST-World
23
GB
2.1 Hitching
Note: The relevant national regulations (f.e. safety-at-work) must be
observed when hitching and unhitching.
No one must stand between the vehicles!
x To engage, press hand lever upwards until it engages
x Check whether funnel is locked.
x Position drawbar eye in centre of funnel
x Disengage brake on front axle of turntable drawbar trailer
x Set drawbar eye to height of coupling point (centre of funnel).
x Slowly reverse prime mover
When hitching to a central-axle trailer (see fig. 3):
x Reverse prime mover very slowly
x The drawbar eye must be inserted into the middle of the jaw.
Otherwise the jaw, the drawbar eye or the drawbar support legs
might be damaged.
Kontrolle:
After each hitching procedure, it is essential to check that the hitch is
correctly closed and locked.
The lock-control pin must not protrude out of its guide after
hitching (see fig. 4)
If the lock-control pin protrudes from its guide (in the dark detectable
by touching it), the hitching procedure has been
carried out incorrectly and there is the risk of an accident!
Driving a trailer in that condition is not allowed.
If not correctly coupled:
– move the prime mover forward (approximately 1 m)
– check again
In-cab status indicator upgrade kit available for retrofitting.

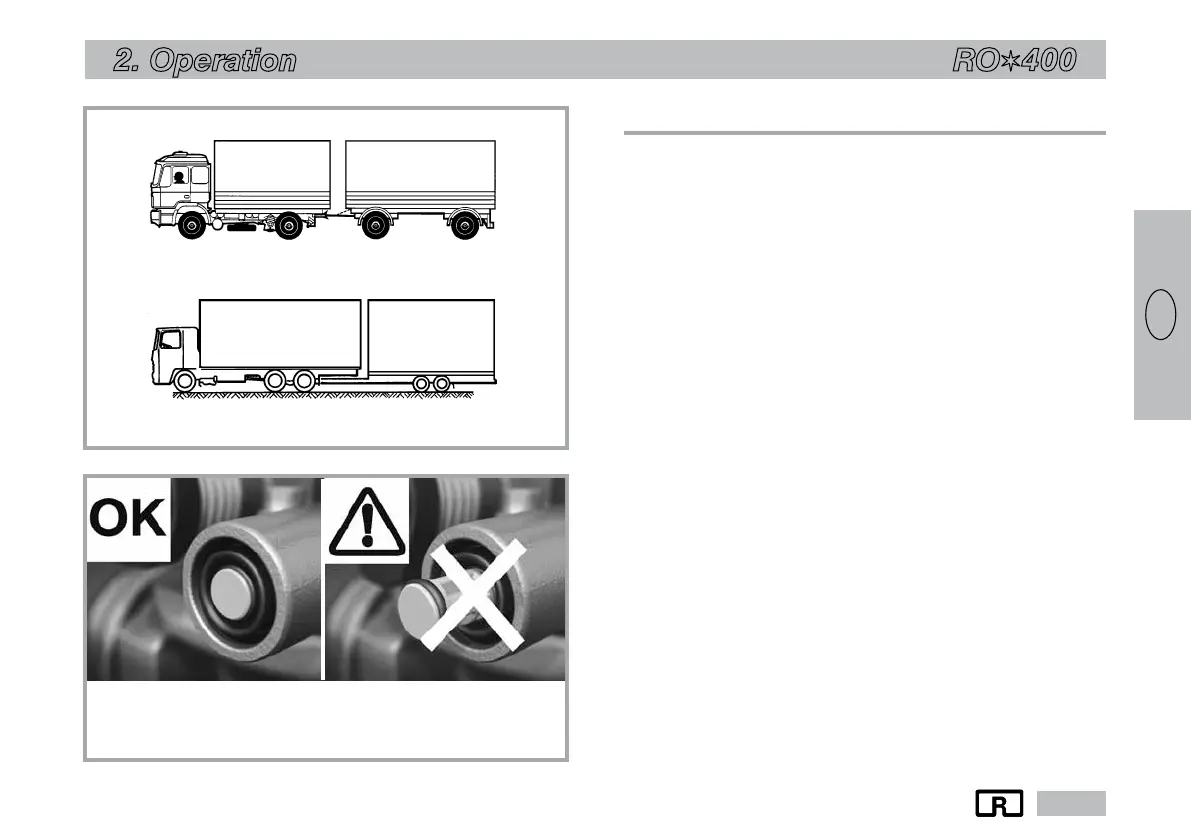

Fig. 3
Tractor unit with drawbar trailer
Tractor unit with rigid trailer
Fig. 4
