10 POINT I/O Field Potential Distributor Modules
Publication 1734-IN059D-EN-E - April 2013

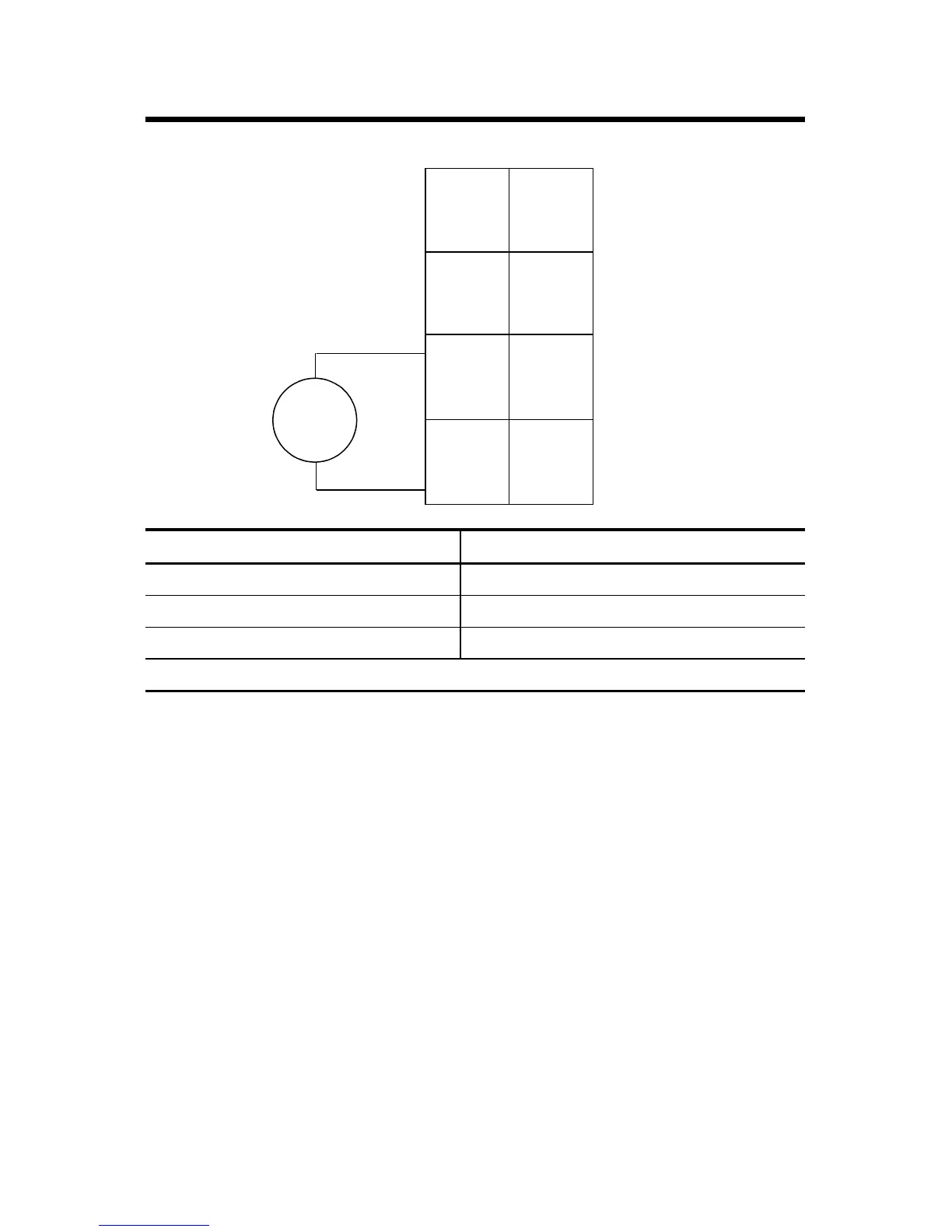

12/24V DC Wiring
Connect Terminal
+V DC 6
-V DC 4
Chas gnd 2
12/24V DC becomes the internal field power bus for modules to the right.
V DC
NC
NC
Chas
gnd
C
V
V
C
Chas
gnd
3
5
7
0
1
2
4
6
This supply will be
connected to the
internal field power bus.
V = 12/24V DC
C = Common
Chas gnd = Chassis ground
12/24V DC
