Rockwell Automation 1734-FPD User Manual

POINT I/O Field Potential Distributor Modules 11
Publication 1734-IN059D-EN-E - April 2013

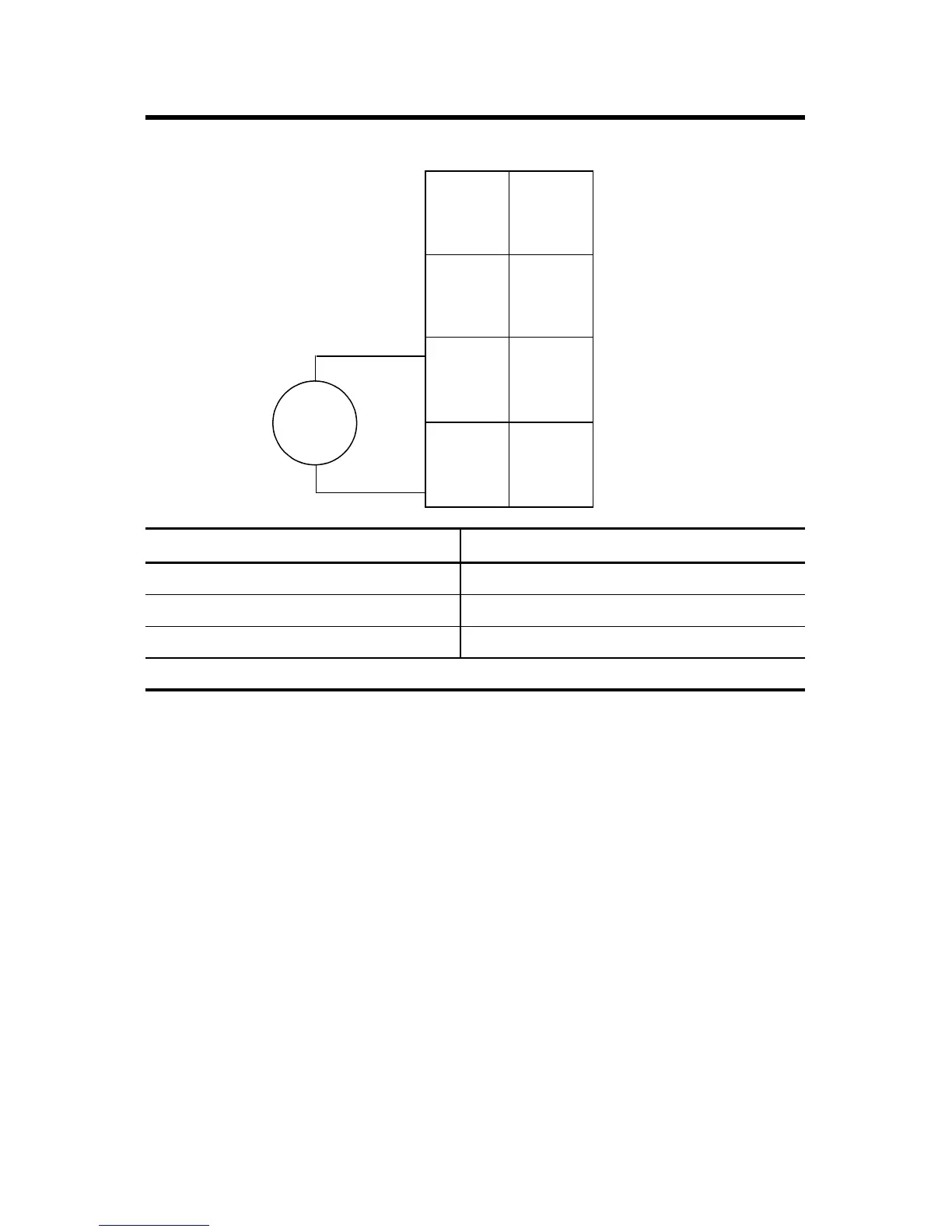

120/240V AC Wiring
Connect Terminal
L1 6
L2/N 4
Chas gnd 2
120/240V AC becomes the internal power bus for modules to the right.
V AC
NC
NC
Chas
gnd
L2/N
L1
L1
L2/N
Chas
gnd
3
5
7
0
1
2
4
6
This supply will be
connected to the
internal field power bus.
L2/N = Neutral
L1 = 120/240V AC
Chas gnd = Chassis ground
12/24V AC

Rockwell Automation 1734-FPD Specifications

General

Brand	Rockwell Automation
Model	1734-FPD
Category	Power distribution unit
Language	English
